• LUMINOX
    SUPREME
    PRO

    OT Light - Surgical OT Light

Luminox Supreme Pro

A versatile partner for surgeons Prism recognizes the need to deliver the latest medical technology in order to enable healthcare practitioners in India to provide the best healthcare services to patients with relatively lower spending capacity. Since the launch of the first product of the Luminox series, Prism has set the industry standard for surgical lighting in India. With the launch of the all new Luminox Supreme, Prism is looking to take the game further by setting a new benchmark for performance expectations from surgical lighting. With a few first in class features, the all new Supreme aims to deliver the latest medical technology to the Indian surgeon at an accessible pricing.

Examination Lights - LED OT Light Manufacturer

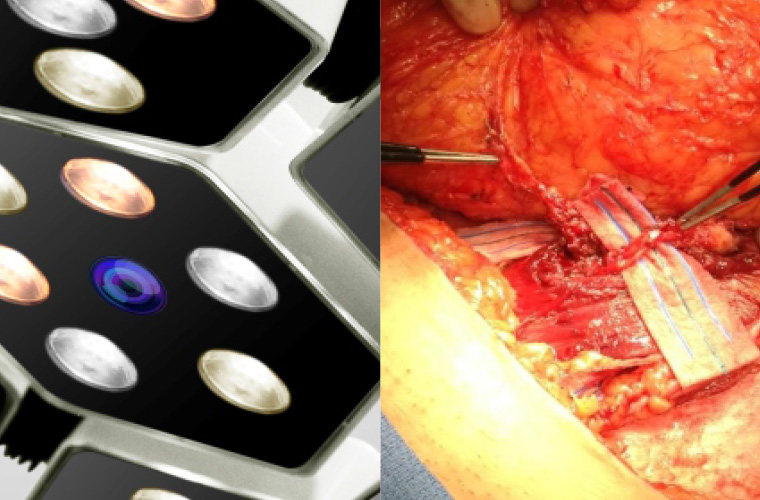

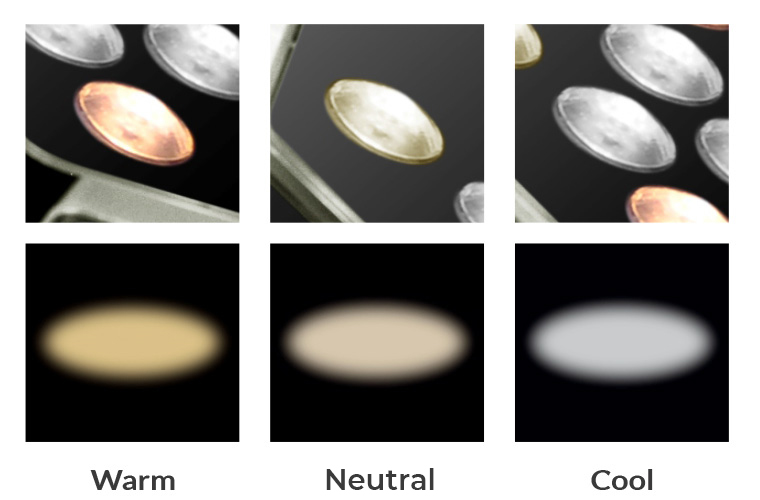

Multicolored LEDs enabling variable color temperature

Luminox Supreme uses multicolored LEDs to achieve either a fixed daylight like color temperature- 4350 K or a variable color temperature from 3700 K to 5500K. This feature is important as the light head can distinguish the difference between various tissue types and the perception of true tissue colors by using the appropriate color temperature mode, which is used especially within cardiac surgery.

Prism uses a combination of warm white, neutral white and cool white LEDs to achieve the required color temperature variation.

Surgical OT Light - Examination Lights

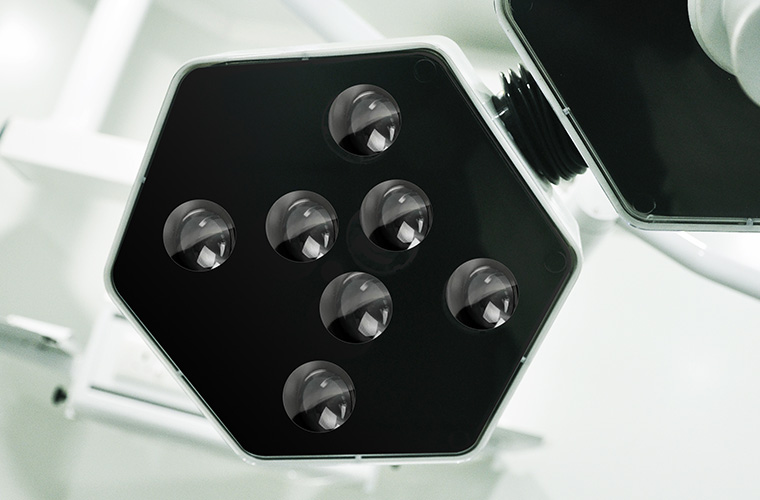

Optically enhanced Shadowless-ness

With over 600 interacting light beams, combined with advanced parallel beam optics, Luminox Supreme ensures a high degree of Shadowless-ness. The new optical design enables the light head to have 23% higher light emitting area, thereby resulting in an enhanced shadow-less compliance.

Operating Theatre Light - OT Light

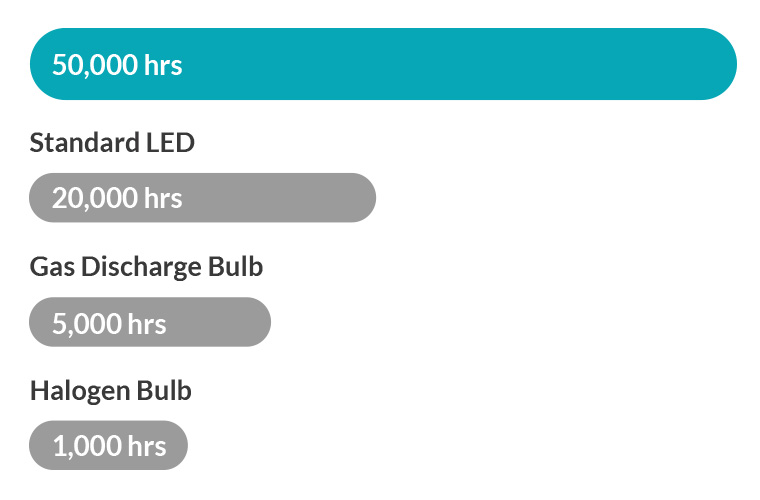

LED Cutting edge illumination technolog

Being a specialist in lighting design, Prism has integrated the latest generation of LEDs and optical technology to ensure maximum power efficiency and comfort for the operating surgeon. Our LEDs have very high lumens per watt enabling superior illumination while consuming very low power and there by low heat. Even at the max 140000 illumination, the LEDs are driven only at 40% of their rated capacity, there by exponentially reducing the heat and extending the life of the LEDs.

Surgical OT Light - LED OT Light Manufacturer
Antiglare Light-field for long surgeries

Optically designed to deliver high intensity light without glare for operating surgeon to manage surgeon eye fatigue. Special optical techniques of indirect illumination and luminance contrast management used to deliver glare free lighting.

OT Light - Surgical OT Light

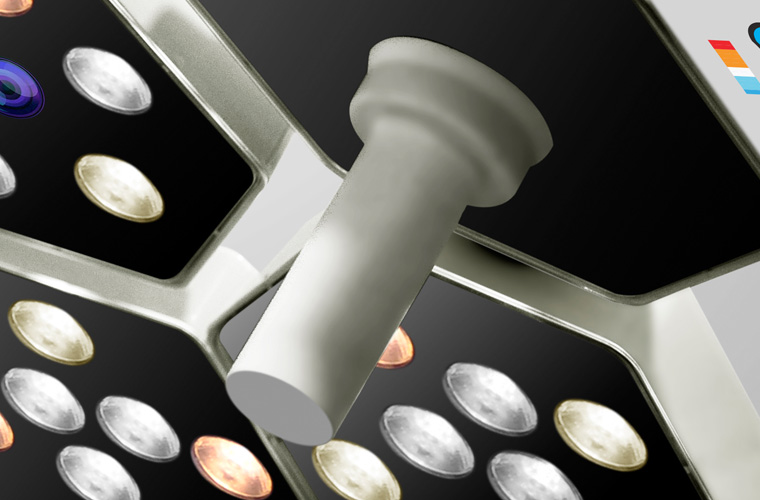

Detachable Handle for Sterilization, hygiene oriented

Each light head comes with 2 detachable sterile field handles to enable surgeon a bit more freedom to hold and move the light head under the spot suspension technique.

LED OT Light Manufacturer
Prism Full HD Imaging solution for good vision

Luminox Supreme comes with a provision to put an inbuilt camera with true Full HD resolution (1920x1080p at 60 fps) and auto focus zoom lens.

The product has been designed to be used in any major OT as the primary light source for open surgical procedures. This model has especially been lauded by the Ortho and Onco specialists where there is requirement of bright illumination over longer duration. The ‘Illuminance Contrast’ management done by our designing team ensures that the light head can be comfortably used for longer surgical procedures, while maintaining the surgeons comfort!

Design & Specifications

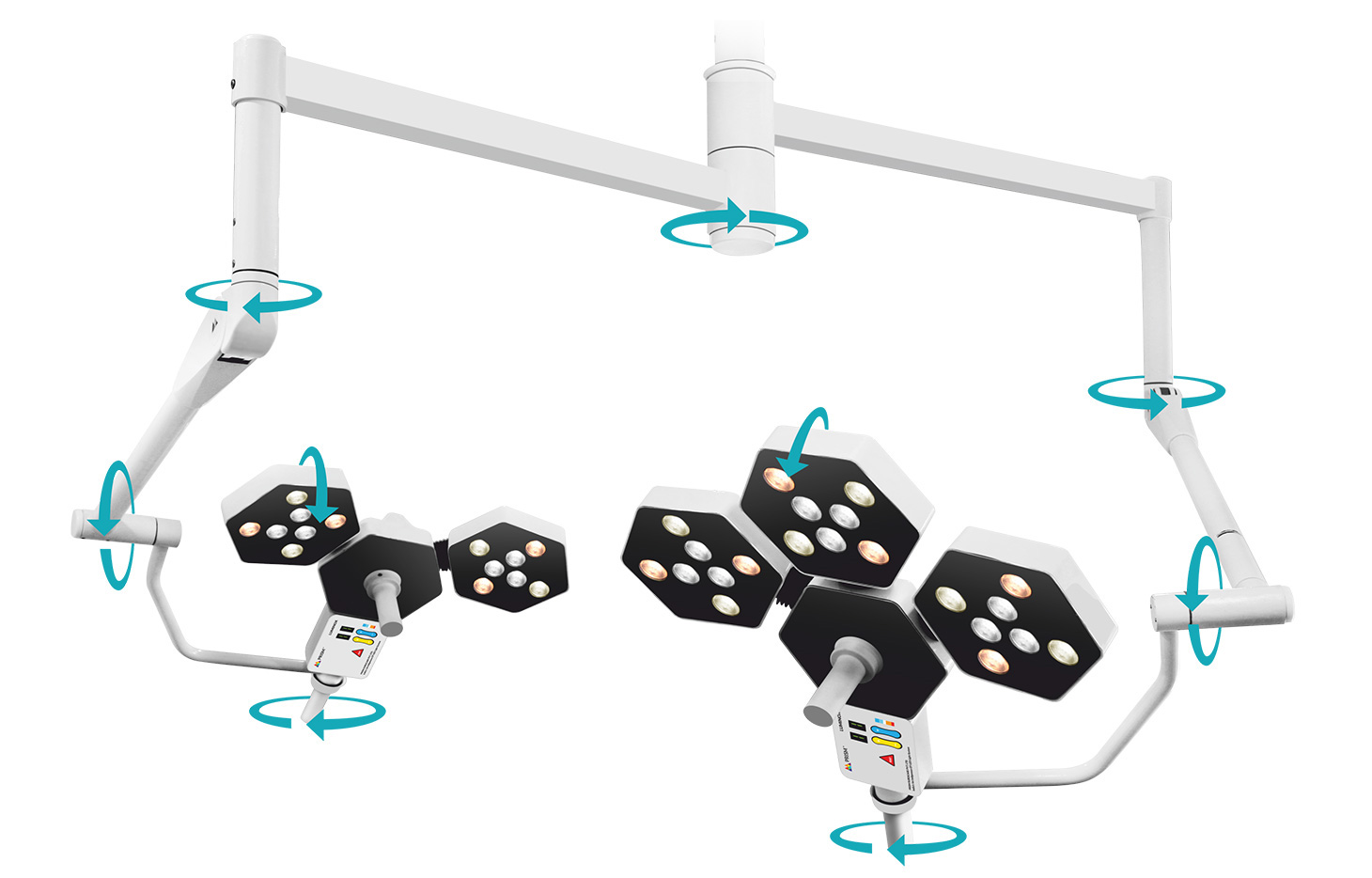

Six degrees of freedom

- 360° around the main axis (Vertical axis).


- 359° around the main arm (Vertical axis).


- Spring arm motion 20° up, 40° down (Total vertical travel 27 inches).


- 359° around the C-arm connector (Variable axis).


- 359° around the Spring arm L-connector (Horizontal axis).


- Mechanical focus adjustment mechanism using sterile handle.

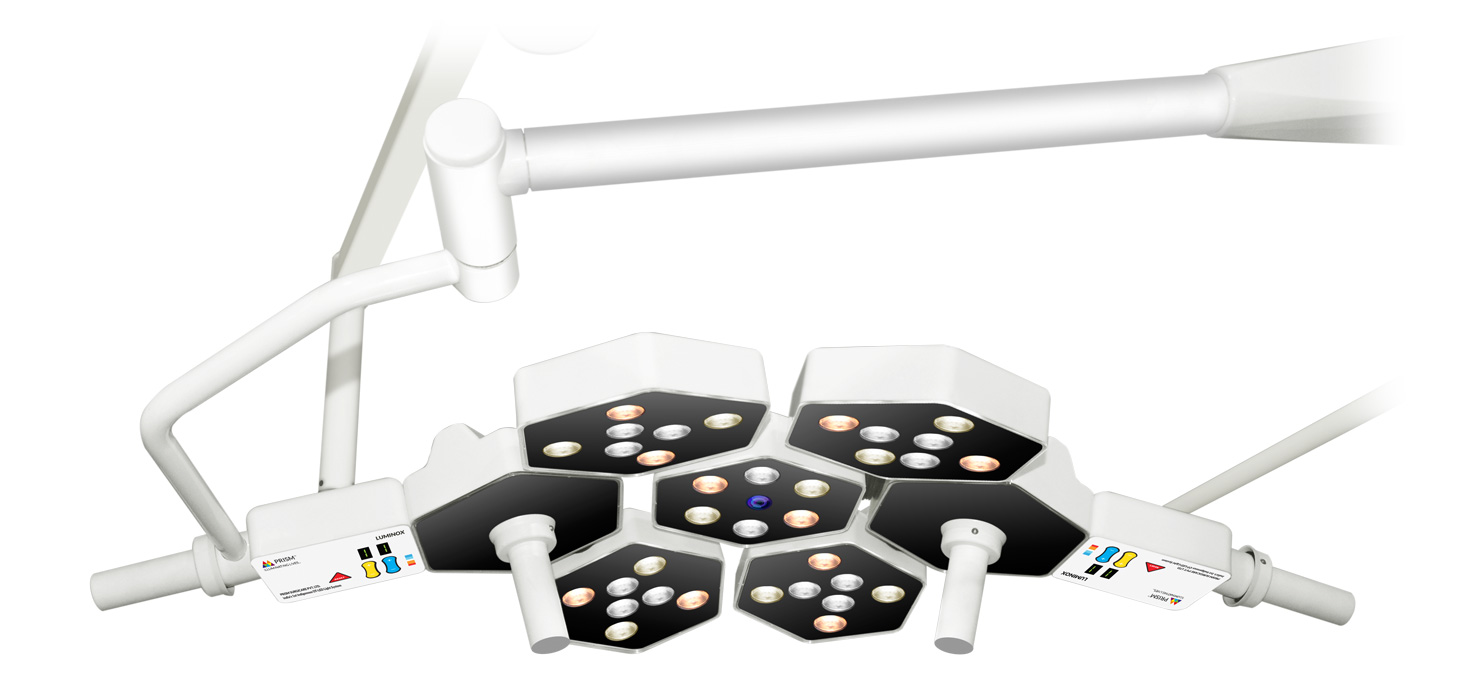

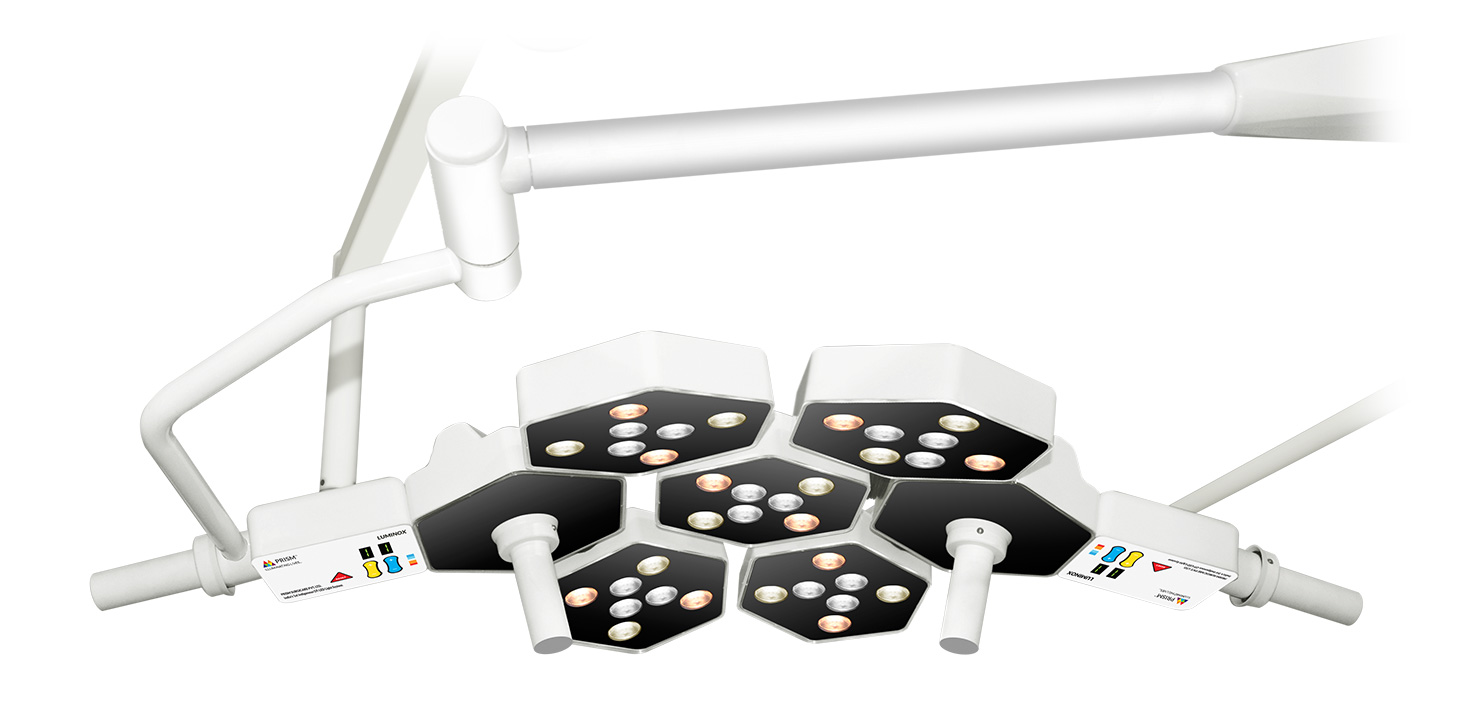

Integra Configuration Design

While the new technology brings in these additional features, Luminox Supreme also carries its unique shape and form of the original design. The surgeon can align both domes in the ‘Integra configuration’ to get an optically enhanced single light head. The light head when aligned together can be used for supra-major surgeries where the operating field is bigger than the normal light field. In the Integra configuration multiple surgeons can also operate near the cavity under the light without having to compromise the shadowless-ness of the light head. When used individually the light head can be used for routine surgical procedures ranging from Oncology, orthopaedic, general surgery, ENT, gynaecology etc. Either of the dome can be used as a principal dome depending on the type of surgical procedure.

  • Recommended For

    Luminox Supreme Series gives surgeon excellent flexibility for all types of applications and can be used for:


    - ENT

    - Neuro

    - Ortho

    - Onco

    - Gynaec

    - General Surgery

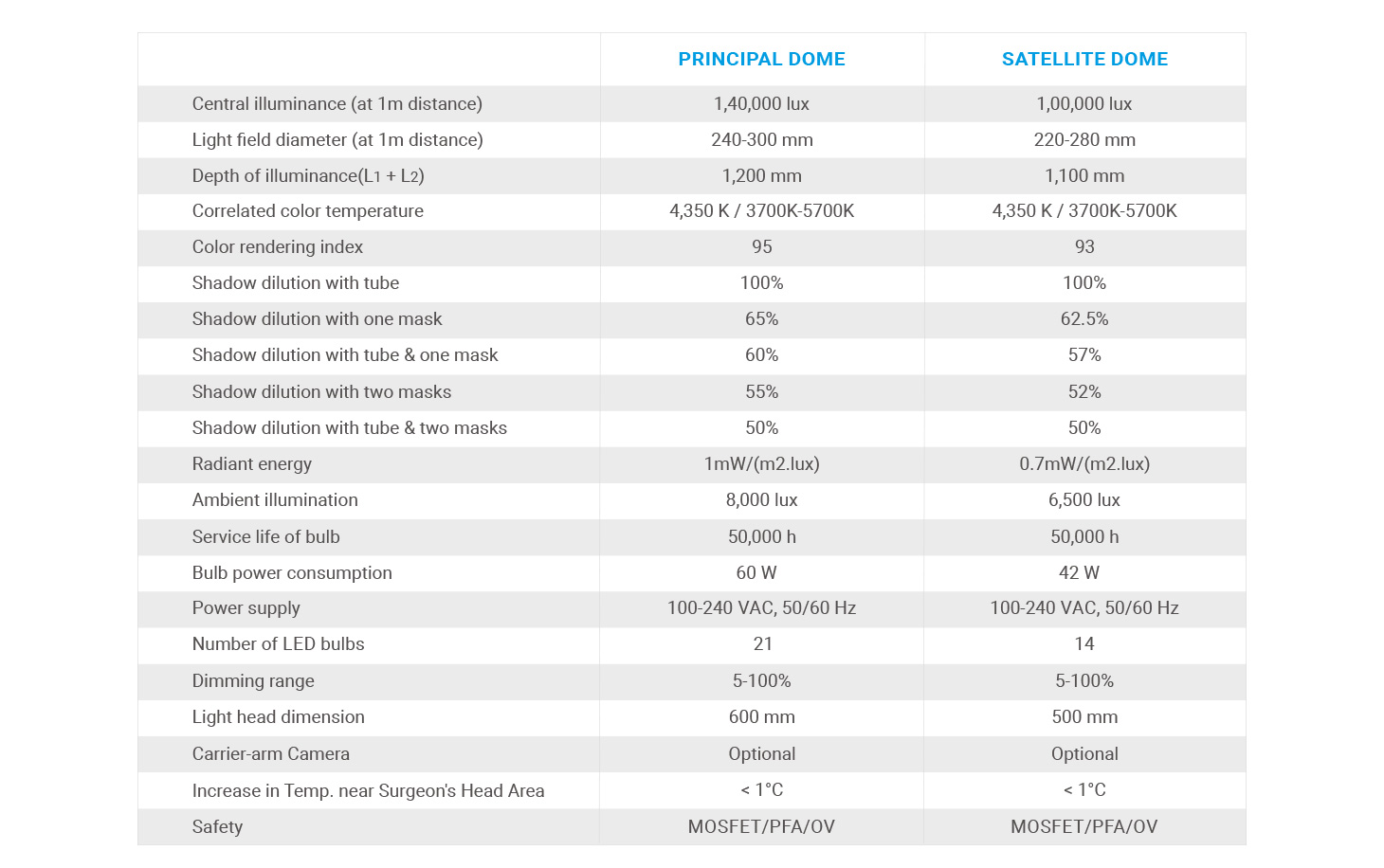

Luminox Supreme Technical Specifications

Luminox Supreme with True Full HD Camera

Luminox Supreme comes with a provision to put an inbuilt camera with
true Full HD resolution (1920x1080p at 60 fps) and auto focus zoom lens.

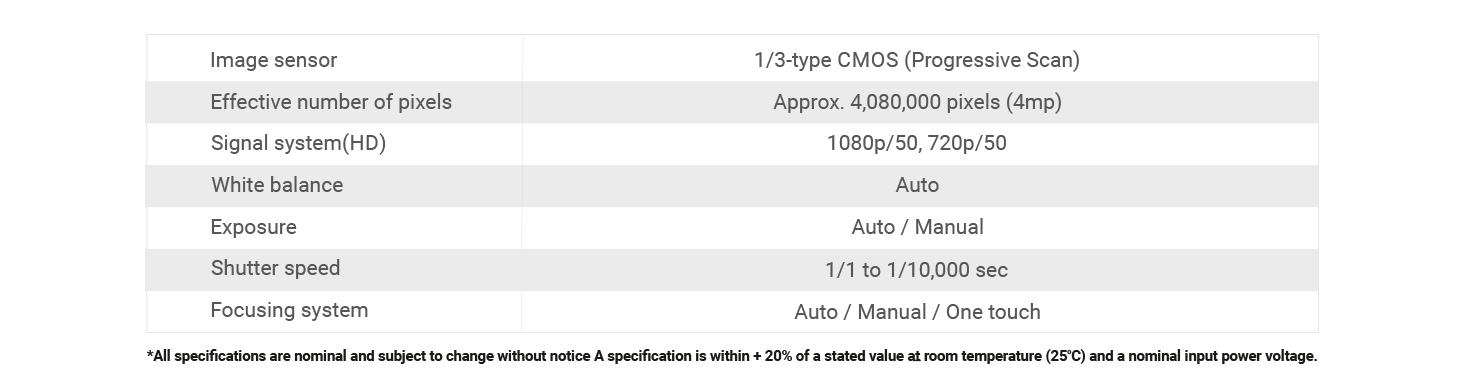

Camera Technical Specifications

Luminox Supreme Pro AV

The video is intended to serve as a guide to our partners and our end user to use our OT light. Please do not use the generator without reading the entire operating manual. For further guidance, please reach out to our authorized representative at Matrix Medicals.
