Introducing all new OT Light
CELESTA SERIES
Lighting is one of the heavenly gifts for Life and Existence in the entire Cosmos: It is Pure, Eternal, Perfect, Divine, Glorious and Beautiful. Celestial lighting is energy moving freely in the entire cosmos, illuminating objects wherever it reaches

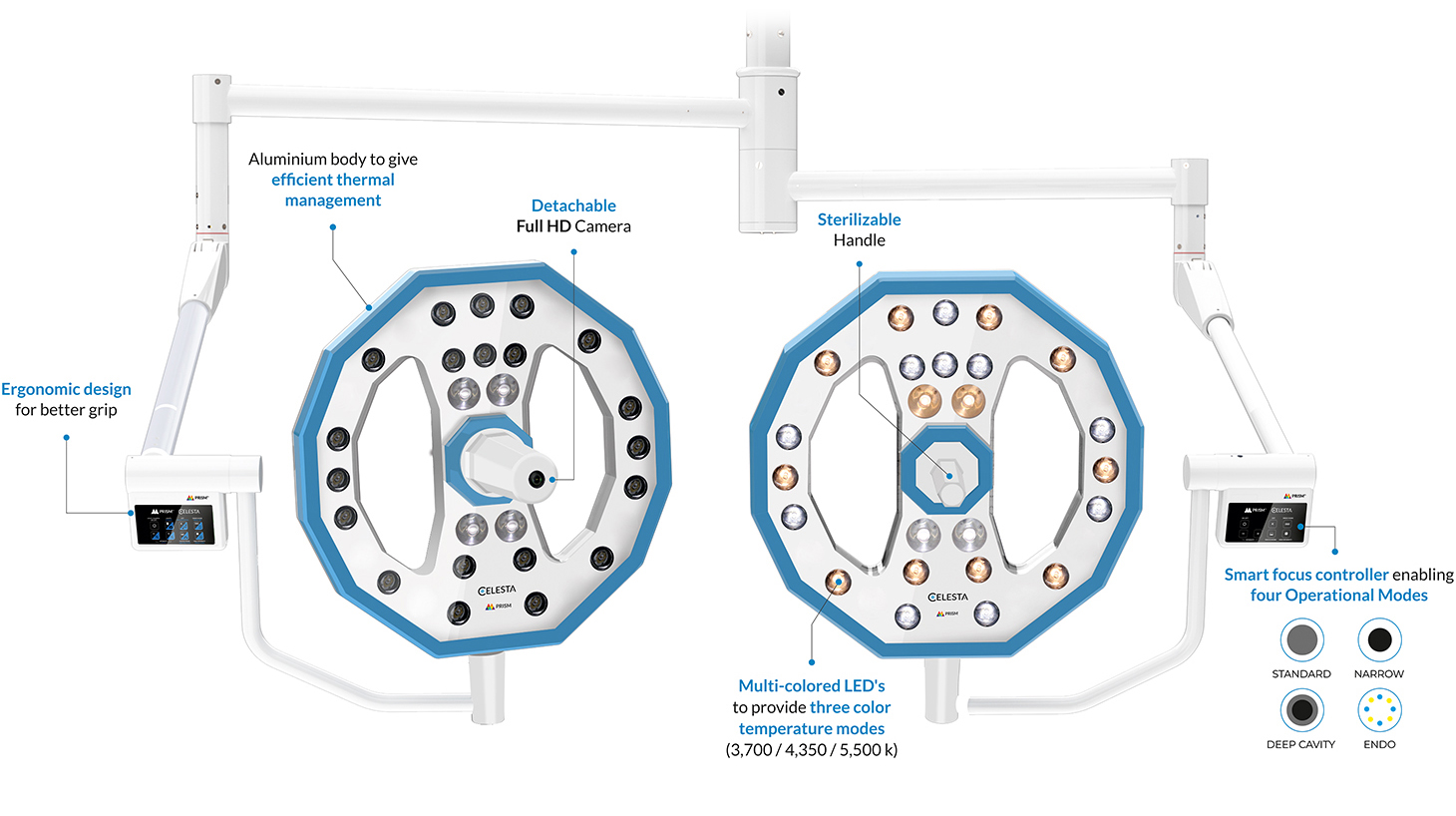

Our innovative CELESTA series surgical lights provide all of the benefits of state-of-the-art, efficient LED technology – all while being made in India. The most recent multi-colour or single-colour LEDs and reflector technology ensure a uniformly lit field. The arrangement of LEDs is as harmonious as the constellation of planets and stars in the galaxy.
Articulately crafted combining four essential metrics of a surgical luminaire
Performance metric : Precise illumination, with almost 100 CRI and more than 90 GAI.
Biological metric : True colors and vivid nature of illumination combined with narrow and deep cavity focus modes enabling variation for various surgical procedures And there are no disturbing color shadows at all because the light is mixed at the source, right inside the light engines.
Design metric : Celesta is characterized by its slim metallic design, clear lines, efficient optics with customization options, and at the same time a highly functional design with intuitive operation.
Engineering metric : 100% failsafe mechanism (Triple redundancy for failsafe nature). All of this is part of the performance provided by EPMD, India's leading LED OT light manufacturer.
Compact Design

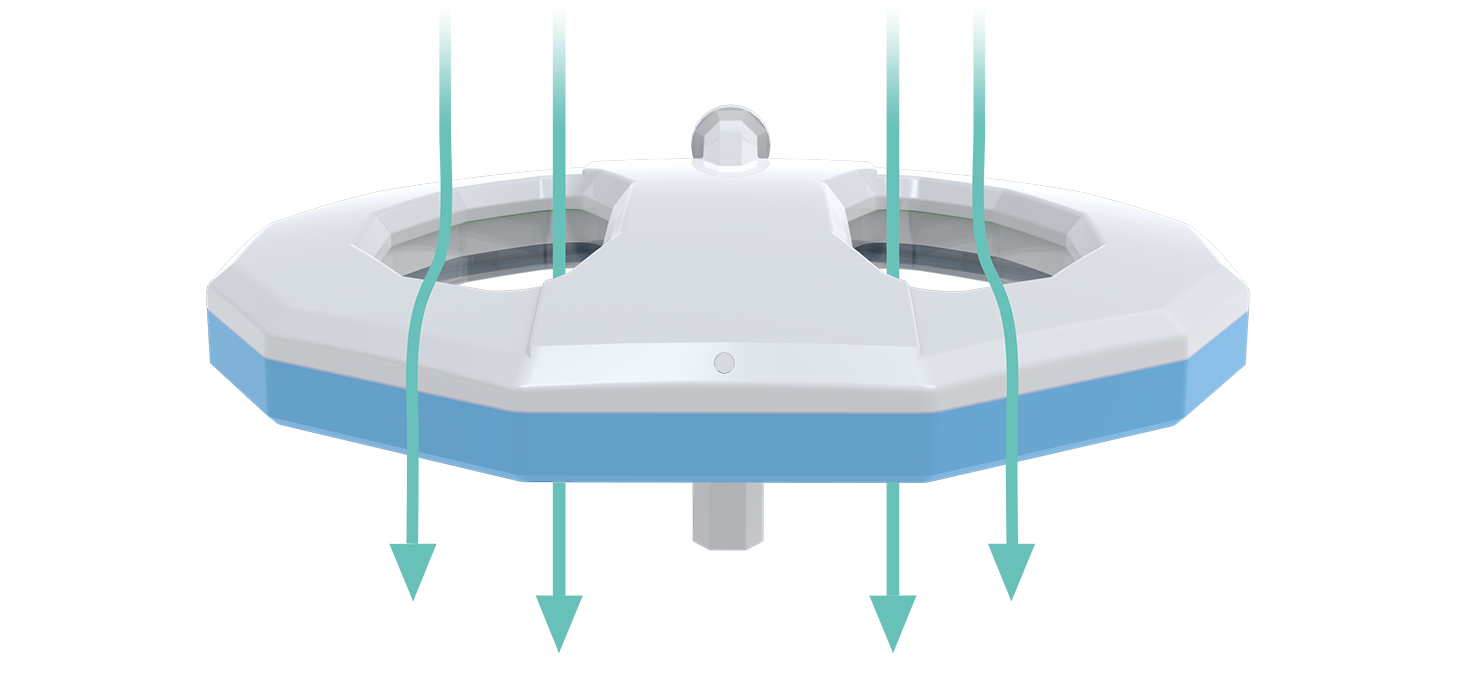

Ergonomic design with rounded edges enabling smooth air flow around the light head body Perform surgery with safety in mind Surgical safety is a goal for healthcare facilities all over the world. The Celesta series of LED surgical light was created with this goal in mind, with an open-shaped design that promotes laminar airflow.
Flexible & Ergonomic Controls
As close to natural light as todays highest known technology can reach.
Focus Adjustments For Desired Clinical Applications

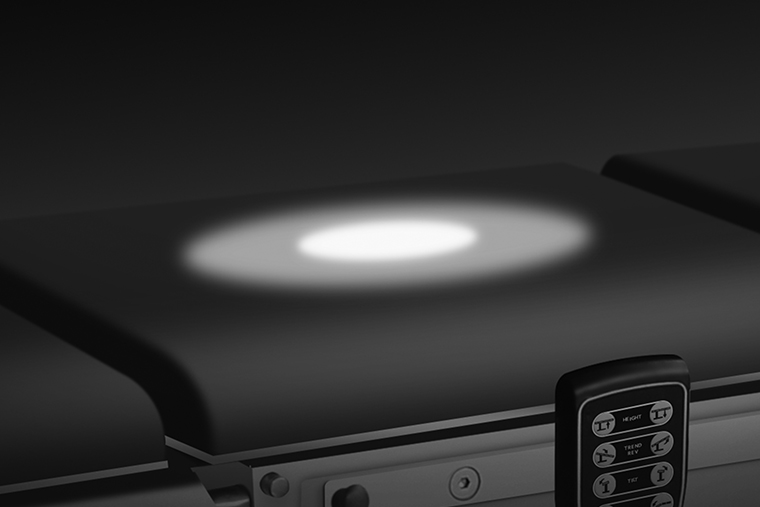

Standard Focus Mode
Precise focus with a D50 of 150, and a D10 of 250. Can be used for the majority of surgical procedures.

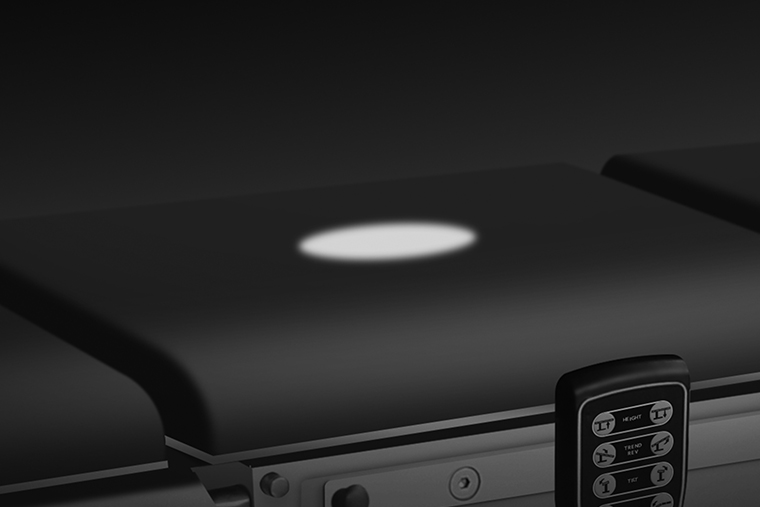

Narrow Focus Mode
Special sharp focus mode with a D50 of 120 and a D10 of 200. Recommended for smaller operating cavity such as neuro or pediatric procedures.

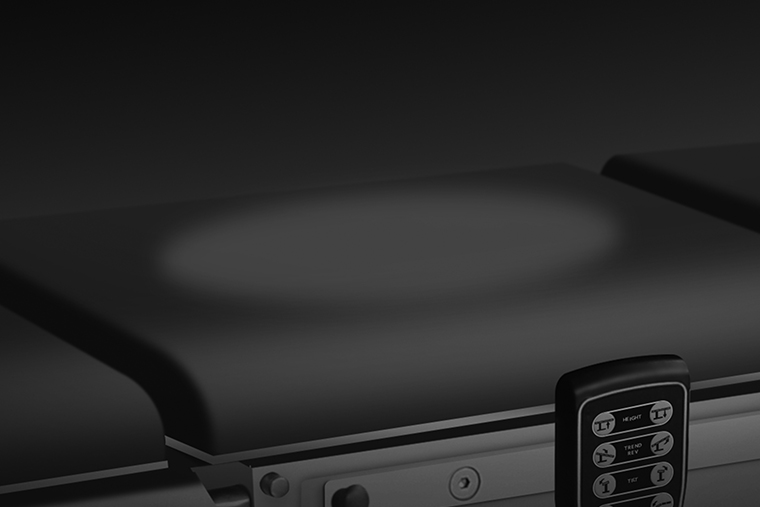

Deep Cavity Focus Mode
Special focus mode designed to provide enhanced illumination in deep cavity procedures. Specially recommended for cardiac procedures.
Truly Natural and Vivid Lighting
The surgical cavity illuminated by the OT light is a multilayered, multicolored illumination site with organs and tissue that are very close to one another. It is very important for the surgeon to look at the true colors of various tissues to be able to do accurate clinical diagnosis and comfortably differentiate one tissue and organ from the other. Thus both true color rendering and vividness, both are very important for the operating surgeon.
Celesta series of surgical light is the first surgical light to deliver over 98 CRI with a combination of over 92 GAI, thus a truly natural and vivid light. Just as CRI (Color Rendering Index) is a measure of the light source's capacity to bring out the natural colors of the object, GAI (Gamut Area Index) is the measure of the ability of the light source to differentiate one object from the other. Prism is the first brand globally to actively promote GAI as an important performance parameter of a surgical light. (can mention as a separate note
Visual fatigue affects work performance. Poor visual conditions can have dire consequences in the operation theatre. However, reducing the contrast between the surgical site and surrounding areas improves comfort and visual performance
The Celesta series of surgical lights has been meticulously designed to improve visual performance, reduce glare, and improve circadian rhythm, resulting in a better working environment for surgeons.
Precise Lighting
Quality over Quantity
Glare is nothing but the wasted light, That reflects back info the surgeons eyesight off objects other than operating cavity
Celesta series of surgical lights is carefully designed to deliver high quality of light precisely at the surgical cavity, where illumination is necessary. By contrast many other manufacturers focus only bright light, which can sometimes cause an undesired outcome of glare. By definition glare is the excess light around the desired light that reflects off of undesired objects back into the surgeon's eyesight causing unnecessary strain and eye fatigue.
The illustration of a person reading the book is a clear example of how a poorly designed light can serve the required application, but in an inefficient way and cause unwanted outcome of glare, causing discomfort to the user. On the other hand a properly designed light, can illuminate the required site with precise lighting, even in smaller amounts of overall light. Thus more is not always better.
Shadow Management
Celesta series of LED OT lights ensures a high degree of shadowless-ness with over 600 interacting light beams combined with advanced parallel beam optics. The new optical design allows the light head to have a 23 percent larger light emitting area, resulting in improved shadow-free compliance.
Corelated Color Temperature
The Celesta series of LED OT lights employs multi-colored LEDs to produce either a fixed daylight-like colour temperature of 4350 K or a variable colour temperature ranging from 3700 K to 5500 K. This feature is important because the light head can distinguish between different tissue types and perceive true tissue colours by using the appropriate colour temperature mode, which is especially useful in cardiac surgery.

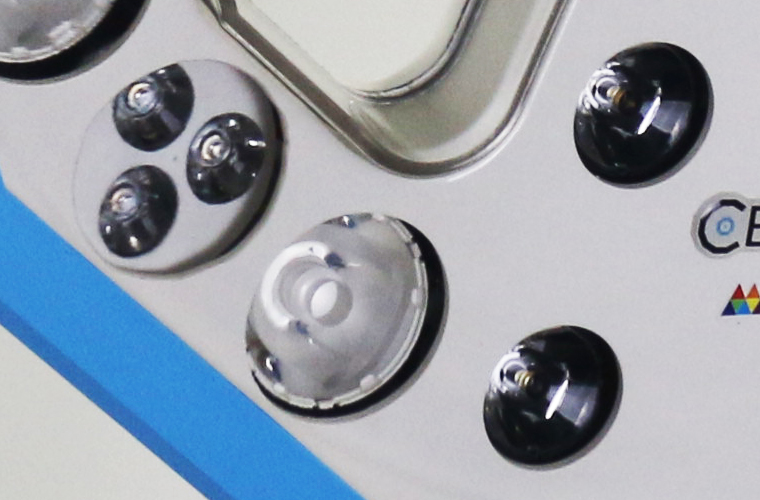

LED Cutting edge illumination technology

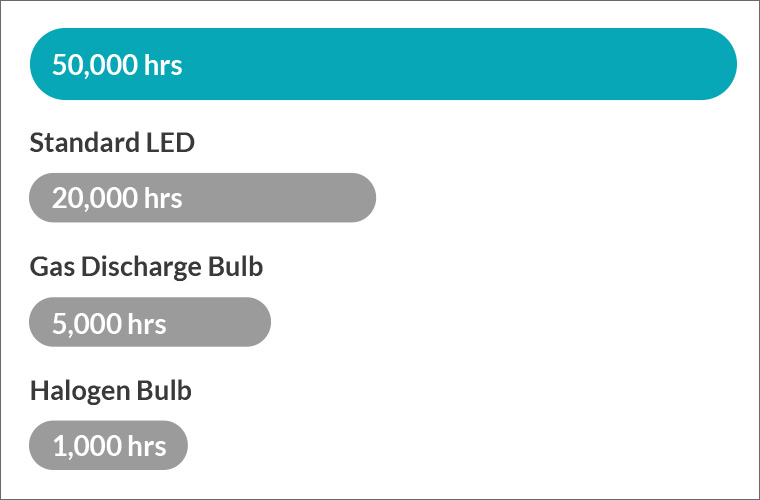

As a lighting design expert, Prism has incorporated the most recent generation of LEDs and optical technology to ensure maximum power efficiency and comfort for the operating surgeon. Our LEDs have very high lumens per watt, allowing for superior illumination while consuming very little power and thus producing very little heat. Even at the maximum illumination of 160000, the LEDs are only driven at 30% of their rated capacity, exponentially reducing heat and extending LED life. In fact, this has allowed our LEDs to achieve a rated life of 100000 hours.
Detachable Handle for Sterilization, hygiene oriented

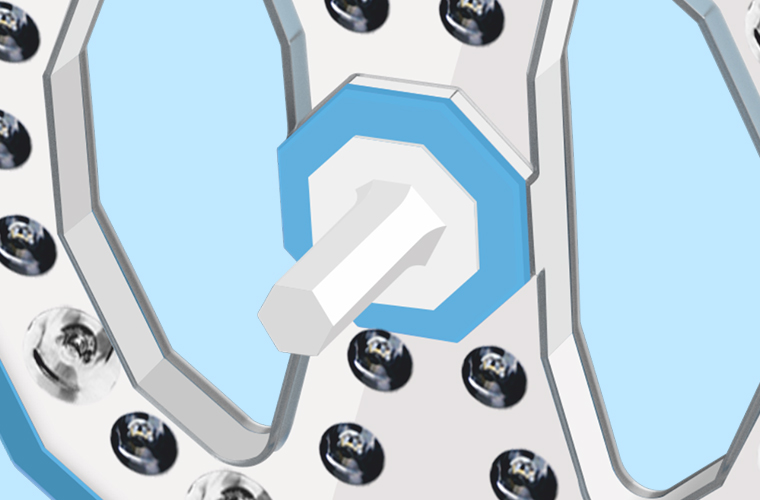

Detachable sterilisable handle mounted on the light head to enable movement control for the operating surgeon
Antiglare Light-field for long surgeries
Optically designed to deliver high intensity light without glare for operating surgeon to manage surgeon eye fatigue. Special optical techniques of indirect illumination and luminance contrast management used to deliver glare free lighting.

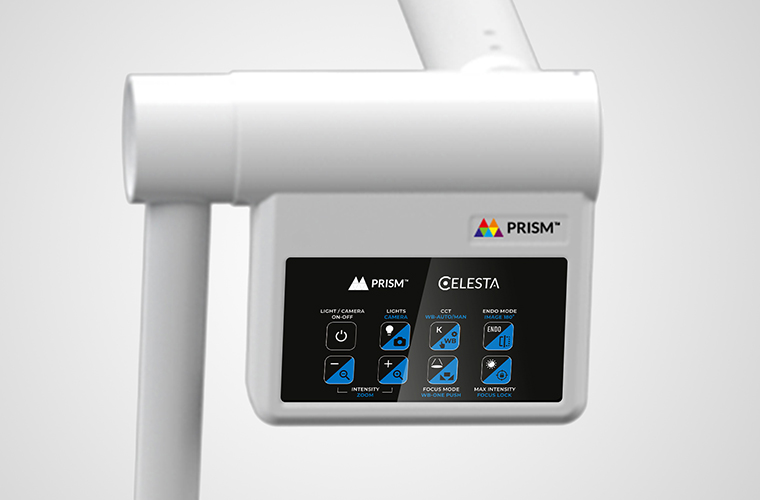

Control Panel

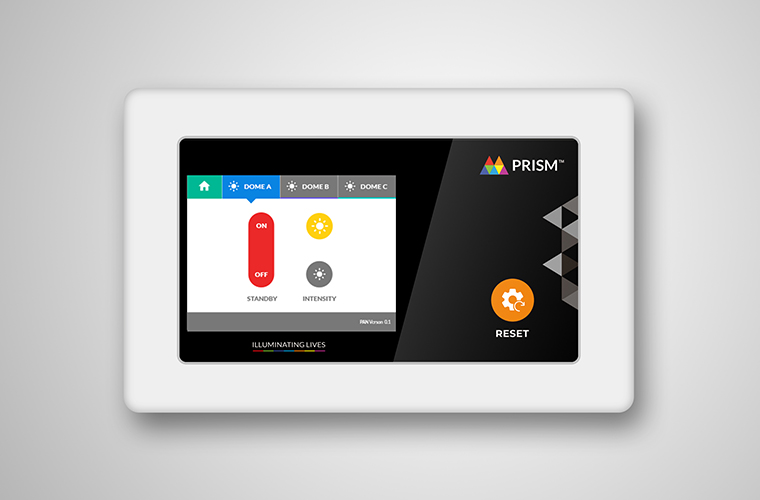

Smart Control Panel with options to change the intensity, color temperature and focus of the surgical light. Inbuilt Standby mode to put the light in standby in between procedures
It is simple to adjust the light to the surgeon's specifications with the Celesta series of surgical lights. All aspects of the lighting experience, from positioning to intensity, are easily adjustable.
Wall Mount Control Panel
Optional wall-mount panel to enable remote control of the surgical light for the OT staff
Hawk Eye Vision Imaging Solution
Full HD Camera Outstanding Images Unimagined flexiblity - Hawk Eye Vision
Introducing Prism Smart Light with Surgical Cam (SLSC) module - Versatile networking and video conferencing solution for surgical workshops and clinical education. Mobile tool to enable surgeons to conduct video conferencing from within their OTs. The Full HD video feed generated by our SLSC system can be easily integrated with any video conferencing platform by the clinician to conduct a surgical education or workshop event.
High Definition image quality
Auto focus

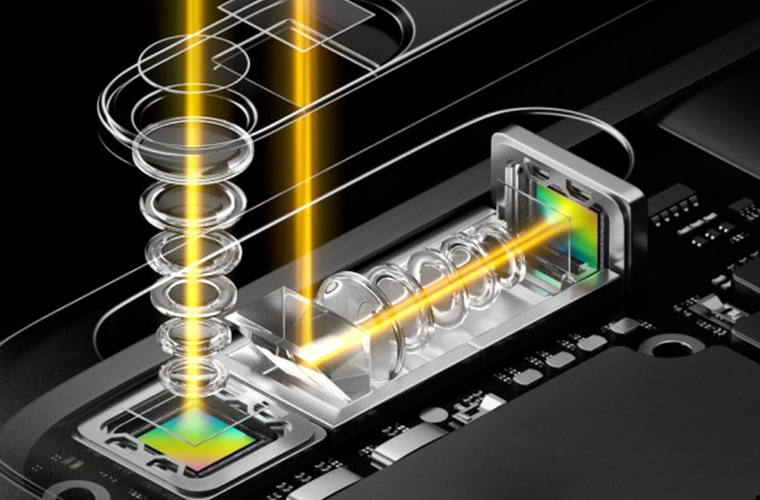

10x optical zoom
Auto white balance
Auto exposure control to counter high intensity of light
Zoom with auto focus tracking
Strategically position to allow unrestricted access to cavity even with multiple surgeons

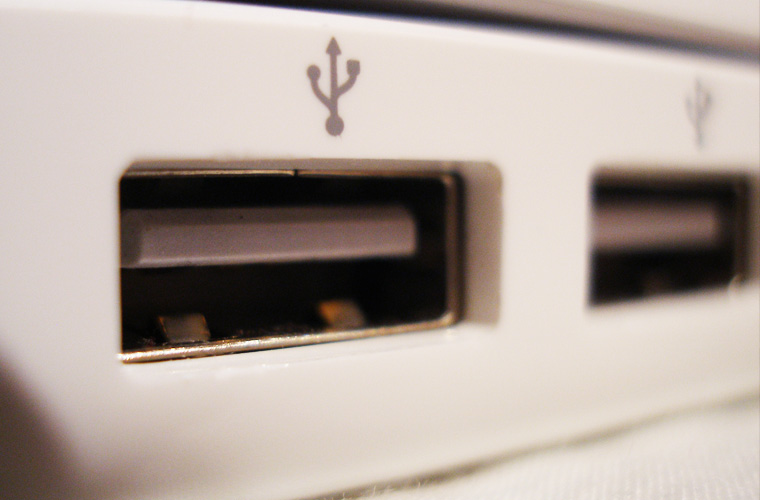

Recorder with usb port
Live Streaming Technology

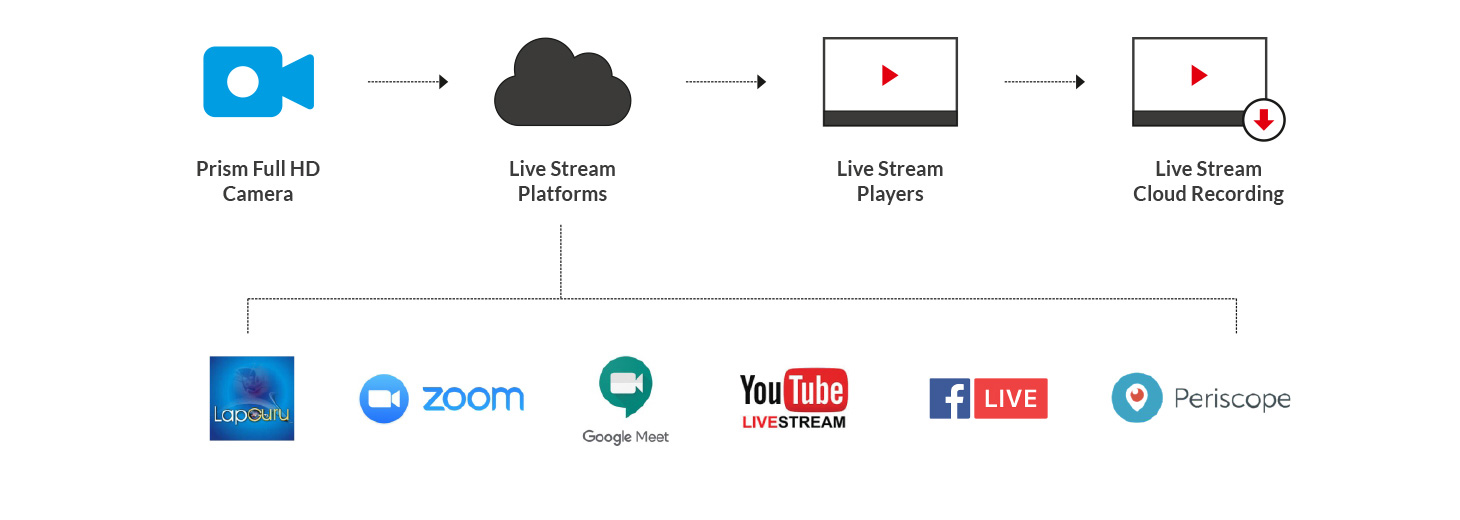

Hawk Eye Vision with Live Streaming Technology
Features of Live Streaming Technology
- High definition video stream integrable with any microphone.
- Ergonomics designed for use in surgical environment.
- Easy sterilization procedure, safe to use inside operation theatre.
- Mobile version making it easy to shift from one OT to the other during the event.
- Cost effective solution, available on rent per day.
