Cresta Touch Screen: Next-Generation Surgical Energy Platform

The Cresta Touch Screen is a state-of-the-art surgical energy platform engineered for precision, safety, and user-friendly operation. Its advanced capacitive touch interface empowers surgeons to effortlessly select modes, adjust power levels, and monitor performance in real-time during critical procedures.

Versatile and compatible with universal accessories, our touch screen ESU is an ideal choice for general surgery, laparoscopy, gynecology, urology, and specialized procedures, ensuring reliable performance in modern operating rooms.

Key Features

1. Consistent Tissue Effect

450 kHz Frequency and High PER (Peak Envelope Ratio) ensure stable and predictable cutting and coagulation across diverse tissue types. High PER minimizes energy loss, delivering smooth, precise surgical outcomes with minimal thermal spread.

Clean incisions, reduced collateral damage.

2. ContactIQ™

Continuously monitors the patient return electrode contact to ensure safe energy delivery. It prevents burns and unsafe operation by adjusting output in real-time, protecting both the patient and surgeon during complex procedures.

Maximum patient safety, every moment.

3. ReSaliX™

Enhances surgical efficiency by reducing dependency on instrument adjustment and manual compensation. Energy delivery initiates only when the electrode is correctly positioned in saline.

Stable Output for Precision Tissue Cutting.

4. SureBind™

Seals vessels up to 7 mm with minimal thermal spread and automatically halts energy delivery upon completion of vessel sealing. This reduces intra-operative blood loss and enhances surgical efficiency.

Secure, reproducible haemostasis.

5. RF Bipolar Cut

Delivers smooth, precise tissue incision with controlled energy and minimal thermal spread for superior surgical outcomes.

Stable Output for Precision Tissue Cutting.

6. SafeZ™

Continuously monitors tissue impedance in real-time and dynamically adjusts output within microseconds, maintaining consistent tissue effects.

Where tissue feedback defines energy delivery.

7. TURICUT™

Enables safe and effective monopolar cutting underwater, ensuring clear visibility, consistent performance, and confident surgical control.

Power Meets Precision in Every Resection.

8. Dual-Mode Operation & Independent Activation

Allows two surgeons to coagulate simultaneously with independent hand switch control.

Optimizes teamwork and workflow in multi-surgeon scenarios.

9. Intuitive Surgeon Interface

Features an IPS Capacitive 7" Touch Screen Display with high resolution, responsive, and wide-angle viewing. Clear mode and power indicators, along with programmable presets, allow surgeons to recall settings quickly for repeated procedures.

Reduces setup time, improves intraoperative efficiency.

10. Program Manager

Easily save surgeon names with personalized settings, enabling quick recall for consistent performance and efficient workflow in every procedure.

Save. Recall. Perform - Precision Made Personal.

11. Auto Diagnostic & System Reliability

A state-of-the-art High-performance ARM32 Microcontroller (Sampling Rate >10,000/sec) ensures rapid sensing, precise energy delivery, and robust system reliability with continuous real-time monitoring.

Trusted performance for every surgery.

12. Warning

Displays real-time warnings and alarms on the LCD with an audible alert.

Smart alert system for uninterrupted surgical performance.

13. Self-Diagnosis

Enables the device to perform self-checks for system errors.

Smart safety begins with self-check.

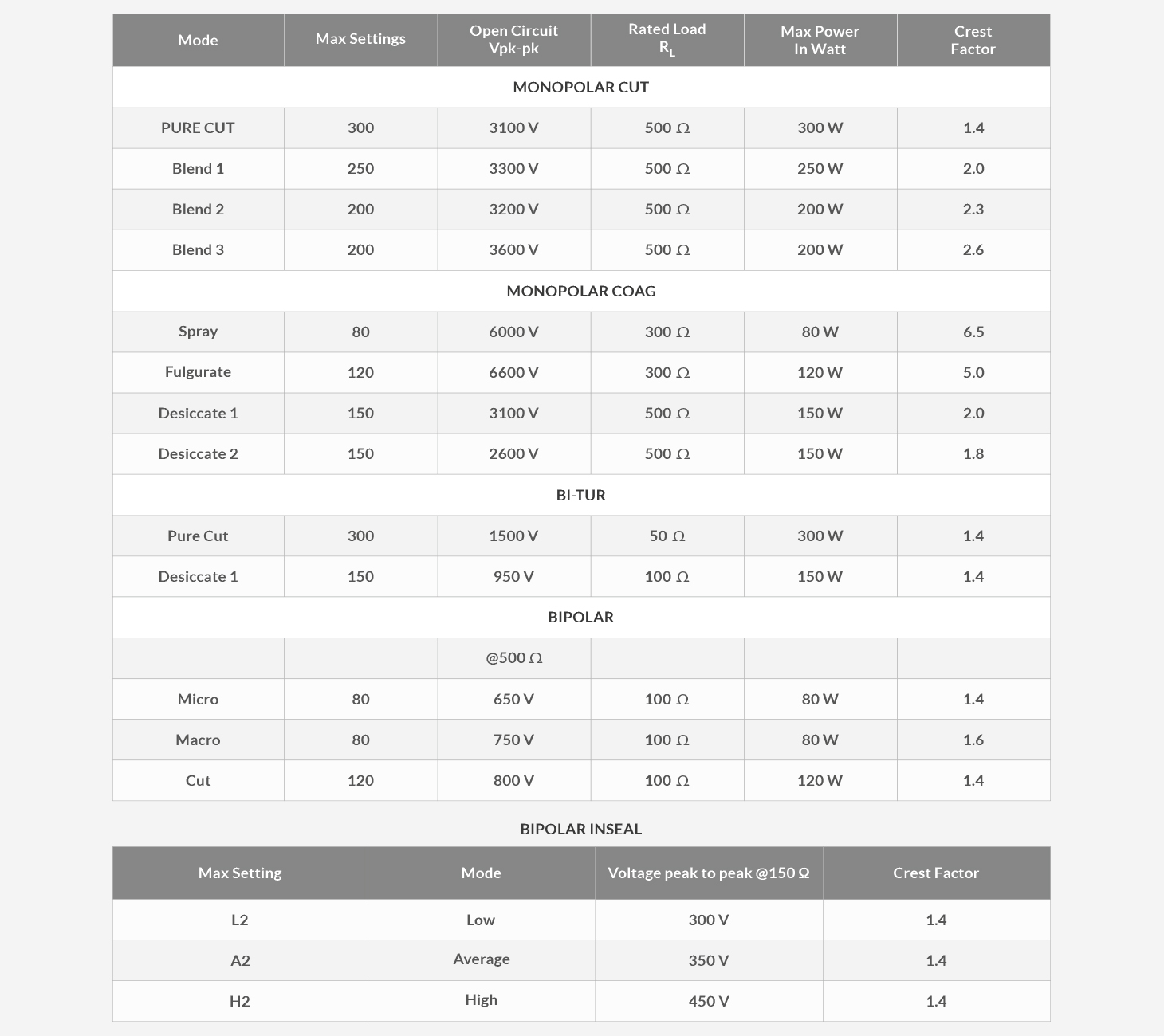

Specifications

Variants	Rated load	Vpk-pk	BT	B+T	IsT	IcT	I+sT	UT
Monopolar mode
Monopolar mode	-	-	1	2	1	1	2	1
Monopolar Cut
Pure Cut	500 Ω	3100V	300W	300W	300W	300W	300W	300W
Blend 1	500 Ω	3300V	250W	250W	250W	250W	250W	250W
Blend 2	500 Ω	3200V	200W	200W	200W	200W	200W	200W
Blend 3	500 Ω	3600V	200W	200W	200W	200W	200W	200W
Monopolar Coag
Spray	300 Ω	6000V	80W	80W	80W	80W	80W	80W
Fulgurate	300 Ω	6600V	120W	120W	120W	120W	120W	120W
Desiccate 1	500 Ω	3100V	150W	150W	150W	150W	150W	150W
Desiccate 2	500 Ω	2600V	150W	150W	150W	150W	150W	150W
Bipolar
Bipolar	-	-	1	1	1	1	1	1
Micro	100 Ω	650V	80W	80W	80W	80W	80W	80W
Macro	100 Ω	750V	80W	80W	80W	80W	80W	80W
Cut	100 Ω	800V	120W	120W	120W	120W	120W	120W
Vessel Sealer
Vessel Sealer	-	-	-	-	1	1	1	-
L1 - L2	150 Ω	300V	NA	NA	110W	110W	110W	NA
A1 - A2	150 Ω	350V	NA	NA	130W	130W	130W	NA
H1 - H2	150 Ω	450V	NA	NA	150W	150W	150W	NA
Saline Bipolar
Saline Bipolar	-	-	-	-	-	-	-	1
Cut	L6	1500V	NA	NA	NA	NA	NA	300W
Coag	L6	950V	NA	NA	NA	NA	NA	250W

Variants	Rated load	Vpk-pk	LT	L2T	ST	WsT	WcT
Monopolar mode
Monopolar mode			-	-	-	1	1
Monopolar Cut
Pure Cut	500 Ω	3100V	NA	NA	NA	300W	300W
Blend 1	500 Ω	3300V	NA	NA	NA	250W	250W
Blend 2	500 Ω	3200V	NA	NA	NA	200W	200W
Blend 3	500 Ω	3600V	NA	NA	NA	200W	200W
Monopolar Coag
Spray	300 Ω	6000V	NA	NA	NA	80W	80W
Fulgurate	300 Ω	6600V	NA	NA	NA	120W	120W
Desiccate 1	500 Ω	3100V	NA	NA	NA	150W	150W
Desiccate 2	500 Ω	2600V	NA	NA	NA	150W	150W
Bipolar
Bipolar	-	-	1	1	-	1	1
Micro	100 Ω	650V	80W	80W	NA	80W	80W
Macro	100 Ω	750V	80W	80W	NA	80W	80W
Cut	100 Ω	800V	120W	120W	NA	120W	120W
Vessel Sealer
Vessel Sealer	-	-	-	-	-	1	1
L1 - L2	150 Ω	300V	NA	NA	NA	110W	110W
A1 - A2	150 Ω	350V	NA	NA	NA	130W	130W
H1 - H2	150 Ω	450V	NA	NA	NA	150W	150W
Saline Bipolar
Saline Bipolar	-	-	-	-	-	-	-
Cut (L6)	100 Ω	1500V	NA	300W	300W	300W	300W
Coag (L6)	100 Ω	950V	NA	250W	250W	250W	250W

Specifications	Details
Weight	<10kg
Dimension (W x D x H)	410mm x 160mm x 480mm
Input Supply voltage & frequency	230V ± 10%, 50Hz
Operating Parameters	Ambient temperature range: +10°C to 40°C Relative Humidity: 15% to 85% non-condensing Atmospheric pressure: 700 to 1060 millibars
Transport & Storage	Ambient temperature range: -10°C to +60°C Relative Humidity: 15% to 90% Atmospheric pressure: 500 to 1060 millibars

Configurations

Cresta BT

One Monopolar
One Bipolar

Cresta B+T

Two Monopolar
One Bipolar

Cresta IsT

One Monopolar
One Bipolar
One Vessel Sealer

Outputs are available in Split port configuration for Bipolar & Vessel Sealer

Cresta IcT

One Monopolar
One Bipolar
One Vessel Sealer

Outputs are available in Common port configuration for Bipolar & Vessel Sealer

Cresta I+sT

Two Monopolar
One Bipolar
One Vessel Sealer

Cresta UT

One Monopolar
One Bipolar
One Saline Bipolar

Cresta LT

One Monopolar
One Bipolar
One Vessel Sealer

Cresta L2T

One Monopolar
One Bipolar
One Vessel Sealer

Cresta ST

One Monopolar
One Bipolar
One Vessel Sealer

Cresta WsT

One Monopolar
One Bipolar
One Vessel Sealer
One BiTUR

Outputs are available in Split port configuration for Bipolar & Vessel Sealer

Cresta WcT

One Monopolar
One Bipolar
One Vessel Sealer
One BiTUR

Outputs are available in Common port configuration for Bipolar & Vessel Sealer

Accessories

Mains Cord

Monopolar Dual Pedal Footswitch

Bipolar Vessel Footswitch Sealer Dual Padel

Bipolar Vessel Footswitch Sealer Dual Pedal

Bipolar Single Pedal Footswitch

Disposable Handswitch Pencil

Chuck Handle with Electrode

5 mm Seal & Cut Instrument

Silicon Rubber Patient Plate

REM Patient Plate

Resectoscope

Biclamp (7 mm)

Fenestrated Grasper

Bipolar Cord

Bipolar Forceps with Cord

Maryland Grasper

Patient Plate Cord

REM Patient Plate Cord

Sealer & Cutter 10 mm

Sealer & Cutter 5 mm

Sealer Cutter Cable
