450 kHz consistent tissue effect
High PER at 450 kHz delivers stable, predictable cutting and coagulation across tissue types with minimal thermal spread.
Electrosurgery
Cresta Touch
Next-generation surgical energy with a capacitive 7" touch interface and SafeZ tissue feedback.
Cresta Touch Screen is a next-generation surgical energy platform designed for precision, safety, and user-friendly operation. The advanced capacitive touch interface allows surgeons to easily select modes, adjust power levels, and monitor performance in real time during critical procedures.
Versatile and compatible with universal accessories, this touch screen ESU is suitable for general surgery, laparoscopy, gynecology, urology, and specialized procedures, making it a reliable choice for modern operating rooms.
Purpose-built
What Cresta Touch delivers
Monopolar, bipolar, saline bipolar, and vessel sealing on one RF platform with trademark tissue sensing and return electrode safety.
Consistent Tissue Effect
450 kHz frequency and high PER deliver stable cutting and coagulation with minimal thermal spread.
ContactIQ
Continuously monitors patient return electrode contact and adjusts output in real time.
ReSaliX
Saline bipolar energy starts only when the electrode is correctly positioned in saline.
SureBind
Seals vessels up to 7 mm with minimal thermal spread and automatic energy stop on seal completion.
RF Bipolar Cut
Smooth, precise tissue incision with controlled energy and minimal thermal spread.
SafeZ
Monitors tissue impedance in real time and adjusts output within microseconds.
Performance and control

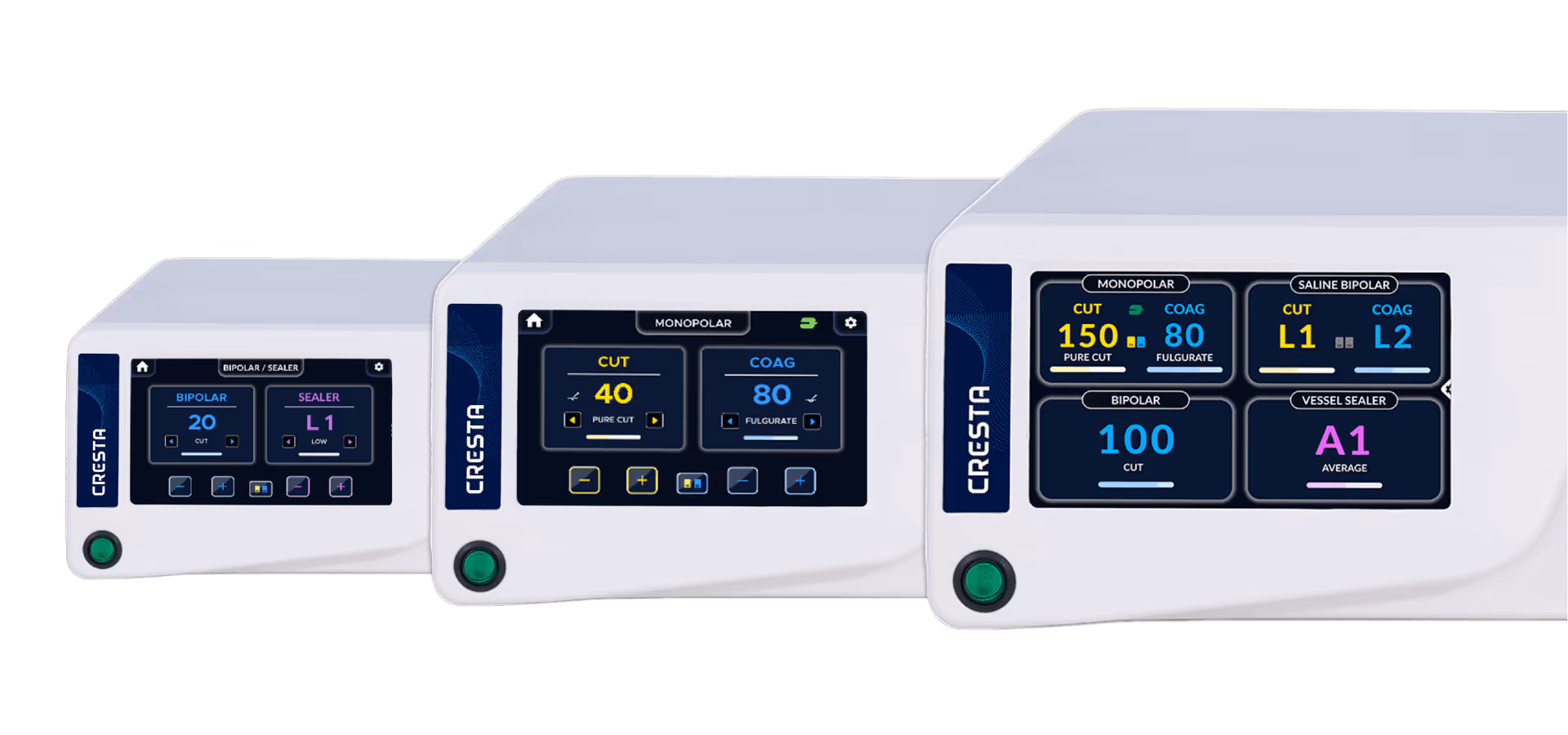

Touchscreen console for the modern OR
IPS capacitive 7" touchscreen with clear mode and power indicators for responsive control at the sterile field edge.
Rear connector layout supports monopolar, bipolar, vessel sealer, and saline bipolar outputs across eleven configuration SKUs.
Advanced capabilities
Console intelligence for every case
TURiCUT
Safe and effective monopolar cutting under water for clear visibility during resection.
Program Manager
Save surgeon names with personalised settings for quick recall in repeated procedures.
7" IPS capacitive touchscreen
High-resolution, responsive, wide-angle display with programmable presets for fast intraoperative adjustment.
Auto diagnostic and ARM32 control
High-performance ARM32 microcontroller with sampling rate >10,000/sec for rapid sensing and precise energy delivery.
Warnings and audible alerts
Real-time warnings on the LCD with audible alerts for uninterrupted surgical performance.
Self-diagnosis
Automated system self-checks detect errors before and during clinical use.
Dual-mode operation
Two surgeons can coagulate simultaneously with independent hand-switch control.
In the field
RF energy for general and specialty surgery
From open general surgery to laparoscopy, gynecology, urology, and specialized procedures, Cresta Touch delivers monopolar, bipolar, saline bipolar, and vessel sealing with tissue feedback clinicians can trust.
In detail
ContactIQ return electrode monitoring
Continuous patient return electrode contact monitoring adjusts output in real time to protect patient and surgeon.
SureBind vessel sealing to 7 mm
Seals vessels up to 7 mm with minimal thermal spread and automatic energy stop on seal completion.
7" IPS capacitive touchscreen
High-resolution responsive display with programmable presets and surgeon profiles for fast setup and intraoperative control.
Configurations
View all configurations

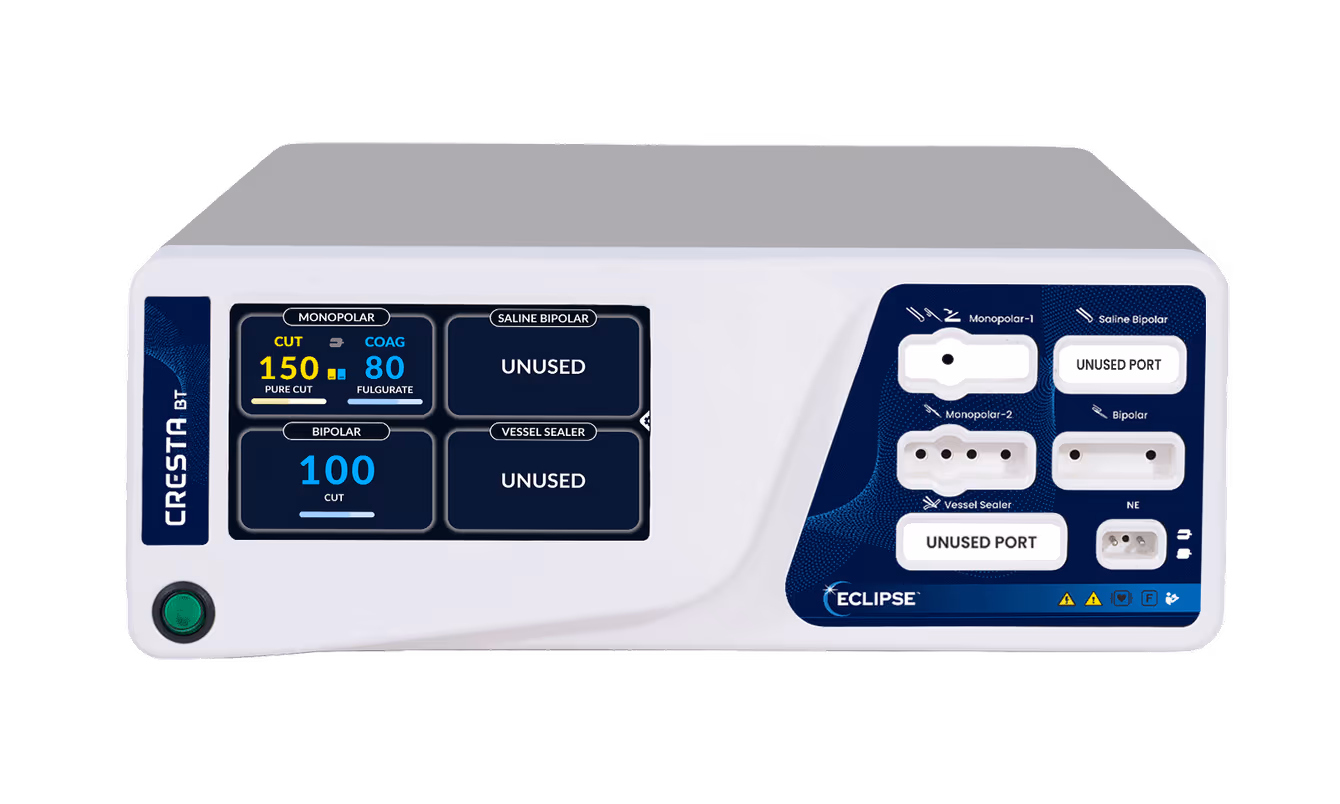

Cresta BT
The Definitive Electrosurgical System - Engineered for Precision.
- OutputsOne Monopolar, One Bipolar
- Display7" Touchscreen
- Vessel SealerNA
- Saline BipolarNA
Cresta B+T
The Definitive Electrosurgical System - Engineered for Precision.
- OutputsTwo Monopolar, One Bipolar
- Display7" Touchscreen
- Vessel SealerNA
- Saline BipolarNA
- Dual-Mode OperationYes
Cresta IsT
The Definitive Electrosurgical System - Engineered for Precision.
- OutputsOne Monopolar, One Bipolar, One Vessel Sealer
- Display7" Touchscreen
- Vessel SealerYes
- Saline BipolarNA
- Port configurationSplit (Bipolar and Vessel Sealer)
Accessories
View all accessories
Specifications
| Parameter | BT | B+T | IsT | IcT | I+sT | UT |
|---|---|---|---|---|---|---|
| Monopolar outputs | 1 | 2 | 1 | 1 | 2 | 1 |
| Monopolar Cut / Pure cut @ 500 Ω | 300 W | 300 W | 300 W | 300 W | 300 W | 300 W |
| Monopolar Cut / Blend 1 @ 500 Ω | 250 W | 250 W | 250 W | 250 W | 250 W | 250 W |
| Monopolar Cut / Blend 2 @ 500 Ω | 200 W | 200 W | 200 W | 200 W | 200 W | 200 W |
| Monopolar Cut / Blend 3 @ 500 Ω | 200 W | 200 W | 200 W | 200 W | 200 W | 200 W |
| Monopolar Coag / Spray @ 300 Ω | 80 W | 80 W | 80 W | 80 W | 80 W | 80 W |
| Monopolar Coag / Fulgurate @ 300 Ω | 120 W | 120 W | 120 W | 120 W | 120 W | 120 W |
| Monopolar Coag / Desiccate 1 @ 500 Ω | 150 W | 150 W | 150 W | 150 W | 150 W | 150 W |
| Monopolar Coag / Desiccate 2 @ 500 Ω | 150 W | 150 W | 150 W | 150 W | 150 W | 150 W |
| Bipolar outputs | 1 | 1 | 1 | 1 | 1 | 1 |
| Bipolar / Micro @ 100 Ω | 80 W | 80 W | 80 W | 80 W | 80 W | 80 W |
| Bipolar / Macro @ 100 Ω | 80 W | 80 W | 80 W | 80 W | 80 W | 80 W |
| Bipolar / Cut @ 100 Ω | 120 W | 120 W | 120 W | 120 W | 120 W | 120 W |
| Vessel Sealer outputs | - | - | 1 | 1 | 1 | - |
| Vessel Sealer / L1–L2 @ 150 Ω | - | - | 110 W | 110 W | 110 W | - |
| Vessel Sealer / A1–A2 @ 150 Ω | - | - | 130 W | 130 W | 130 W | - |
| Vessel Sealer / H1–H2 @ 150 Ω | - | - | 150 W | 150 W | 150 W | - |
| Saline Bipolar outputs | - | - | - | - | - | 1 |
| Saline Bipolar / Cut @ 100 Ω | - | - | - | - | - | 300 W |
| Saline Bipolar / Coag @ 100 Ω | - | - | - | - | - | 250 W |
| Operating Frequency | 450 kHz | 450 kHz | 450 kHz | 450 kHz | 450 kHz | 450 kHz |
| Display | IPS capacitive 7" touchscreen | IPS capacitive 7" touchscreen | IPS capacitive 7" touchscreen | IPS capacitive 7" touchscreen | IPS capacitive 7" touchscreen | IPS capacitive 7" touchscreen |
| Weight | <10 kg | <10 kg | <10 kg | <10 kg | <10 kg | <10 kg |
| Dimensions (W × D × H) | 410 mm × 160 mm × 480 mm | 410 mm × 160 mm × 480 mm | 410 mm × 160 mm × 480 mm | 410 mm × 160 mm × 480 mm | 410 mm × 160 mm × 480 mm | 410 mm × 160 mm × 480 mm |
| Input Supply | 230 V ±10%, 50 Hz | 230 V ±10%, 50 Hz | 230 V ±10%, 50 Hz | 230 V ±10%, 50 Hz | 230 V ±10%, 50 Hz | 230 V ±10%, 50 Hz |
| Operating Temperature | +10°C to +40°C | +10°C to +40°C | +10°C to +40°C | +10°C to +40°C | +10°C to +40°C | +10°C to +40°C |
| Operating Humidity | 15% to 85% non-condensing | 15% to 85% non-condensing | 15% to 85% non-condensing | 15% to 85% non-condensing | 15% to 85% non-condensing | 15% to 85% non-condensing |
| Operating Atmospheric Pressure | 700 to 1060 millibars | 700 to 1060 millibars | 700 to 1060 millibars | 700 to 1060 millibars | 700 to 1060 millibars | 700 to 1060 millibars |
| Transport & Storage Temperature | -10°C to +60°C | -10°C to +60°C | -10°C to +60°C | -10°C to +60°C | -10°C to +60°C | -10°C to +60°C |
| Transport & Storage Humidity | 15% to 90% | 15% to 90% | 15% to 90% | 15% to 90% | 15% to 90% | 15% to 90% |
Frequently asked questions
- What safety technologies are built into Cresta Touch?
- Cresta Touch includes ContactIQ return-electrode monitoring, SafeZ real-time impedance feedback, and SureBind vessel sealing up to 7 mm.Source: Cresta Touch brochure
- What is the Pure Cut power rating?
- Pure Cut is rated at 300 W @ 500 Ω, with blend, spray, fulgurate, bipolar, and saline modes available by configuration.Source: Cresta Touch brochure specifications
- How do clinicians control Cresta Touch?
- A 7" IPS capacitive touchscreen provides primary control with programmable presets and surgeon profiles.Source: Cresta Touch brochure
- Which mode families does Cresta Touch support?
- Monopolar cut and coagulation, bipolar micro/macro/cut, SureBind vessel sealing, and ReSaliX saline bipolar are available depending on configuration.Source: Cresta Touch brochure
- Where are LT, L2T, ST, WsT, and WcT specifications listed?
- Power ratings for LT, L2T, ST, WsT, and WcT variants are documented on each configuration detail page. The product specifications table above covers BT through UT variants.Source: Cresta Touch brochure configurations
