450 kHz consistent tissue effect
High PER at 450 kHz delivers stable, predictable cutting and coagulation across tissue types with minimal thermal spread.
Electrosurgery
Cresta Digital
RF energy platform with 7-segment LED control and SafeTis tissue feedback for dependable OR lists.
Cresta is a next-generation surgical energy platform designed for precision, safety, and user-friendly operation. The advanced user interface allows surgeons to easily select modes, adjust power levels, and monitor performance in real time during critical procedures.
Versatile and compatible with universal accessories, Cresta ESU is suitable for general surgery, laparoscopy, gynecology, urology, and specialized procedures, making it a reliable choice for modern operating rooms.
Purpose-built
What Cresta Digital delivers
Same Cresta RF energy platforms on a 7-segment LED console with SafeTis tissue feedback and up to 100 stored profiles.
Consistent Tissue Effect
450 kHz frequency and high PER deliver stable cutting and coagulation with minimal thermal spread.
ContactIQ
Continuously monitors patient return electrode contact and adjusts output in real time.
ReSaliX
Saline bipolar energy starts only when the electrode is correctly positioned in saline.
SureBind
Seals vessels up to 7 mm with minimal thermal spread and automatic energy stop on seal completion.
RF Bipolar Cut
Smooth, precise tissue incision with controlled energy and minimal thermal spread.
SafeTis
Monitors tissue impedance in real time and adjusts output within microseconds.

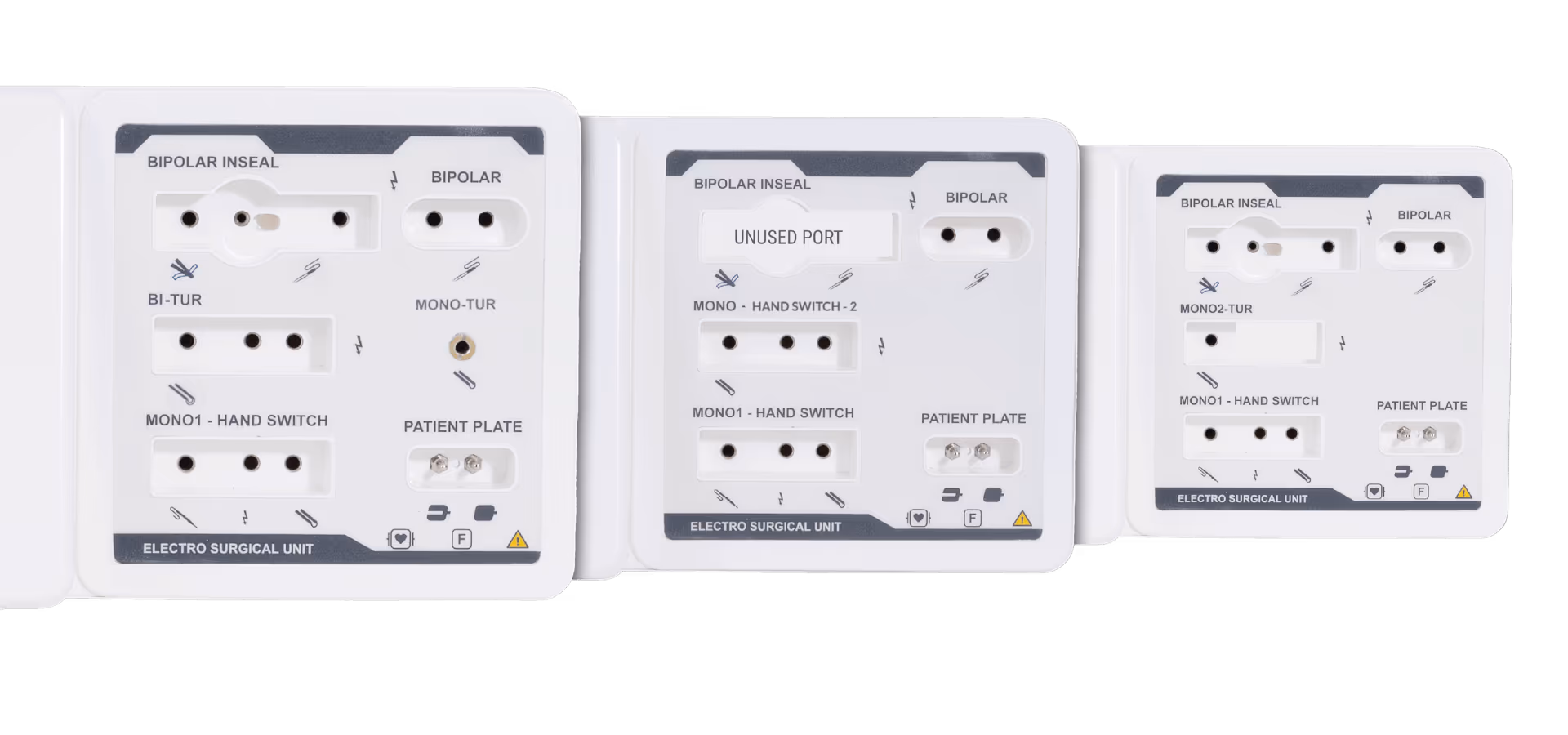

Performance and control
Keypad console built for busy lists
7-segment LED display provides clear, quick-glance visibility and instant numeric recognition under low-light operating conditions.
Nine configuration SKUs from monopolar-bipolar base units through full-modality Ws and Wc layouts with vessel sealing and saline bipolar.
Advanced capabilities
Dependable workflow for every case
TURiCUT
Safe and effective monopolar cutting under water for clear visibility during resection.
Program Manager
Store and recall up to 100 custom profiles for consistent setup across cases.
7-segment LED interface
Clear numeric readouts and error codes with audible alerts, even under low-light conditions.
Auto diagnostic and ARM32 control
High-performance ARM32 microcontroller with sampling rate >10,000/sec for rapid sensing and precise energy delivery.
Self-diagnosis
Automated system self-checks detect errors before and during clinical use.
Dual-mode operation
Two surgeons can coagulate simultaneously with independent hand-switch control.
In the field
RF energy for general and specialty surgery
From open general surgery to laparoscopy, gynecology, urology, and specialized procedures, Cresta Digital delivers monopolar, bipolar, saline bipolar, and vessel sealing with dependable keypad control.
In detail
ContactIQ return electrode monitoring
Continuous patient return electrode contact monitoring adjusts output in real time to protect patient and surgeon.
SureBind vessel sealing to 7 mm
Seals vessels up to 7 mm with minimal thermal spread and automatic energy stop on seal completion.
7-segment LED interface
Clear numeric readouts and error codes with audible alerts, readable under low-light operating conditions.
Configurations
View all configurations
Cresta B
Monopolar and bipolar on a 7-segment LED console.
- OutputsOne Monopolar, One Bipolar
- Display7-segment LED
- Vessel SealerNA
- Saline BipolarNA

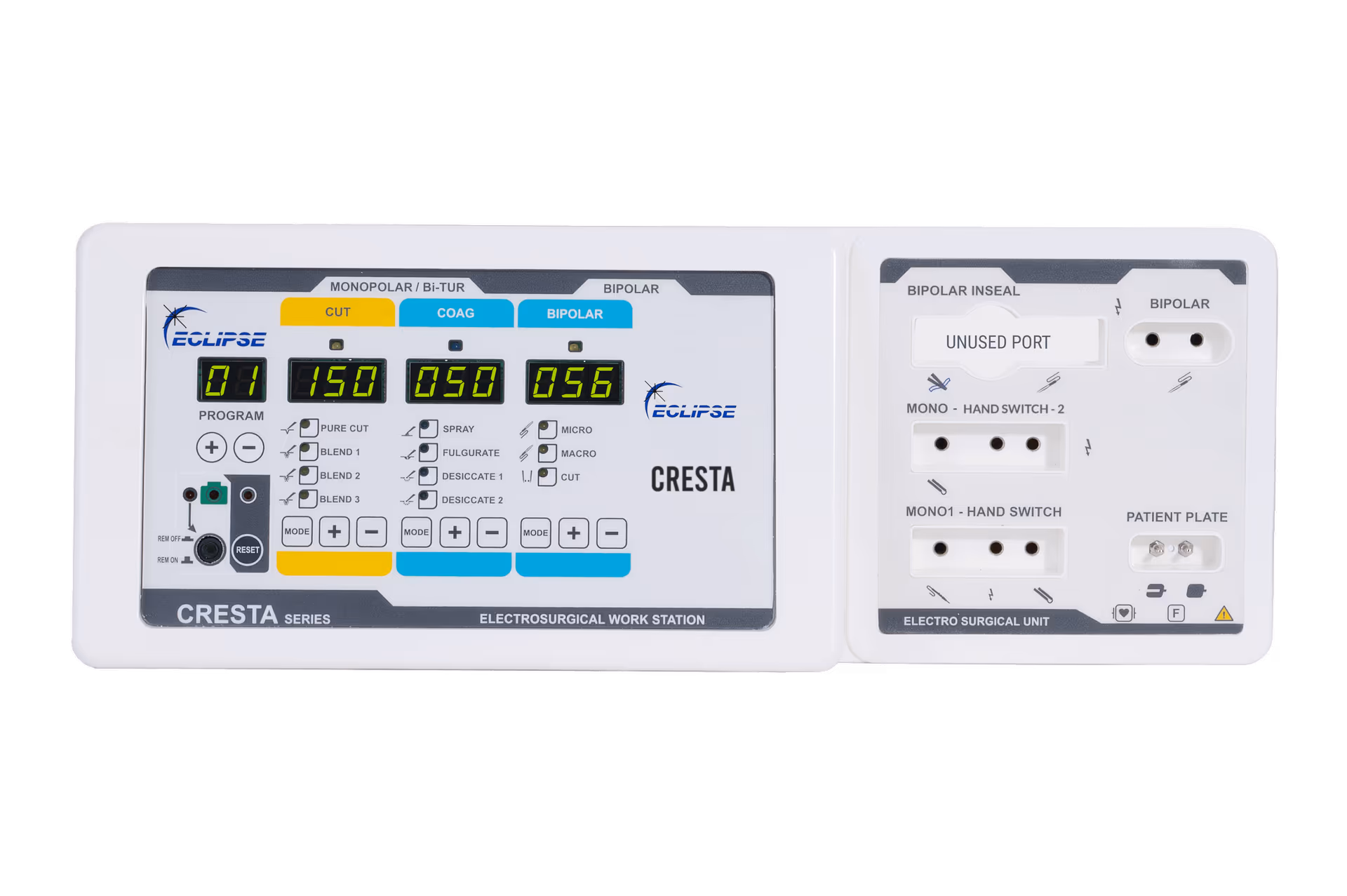

Cresta B+
Dual monopolar outputs for two-surgeon workflows.
- OutputsTwo Monopolar, One Bipolar
- Display7-segment LED
- Vessel SealerNA
- Saline BipolarNA
- Dual-Mode OperationYes

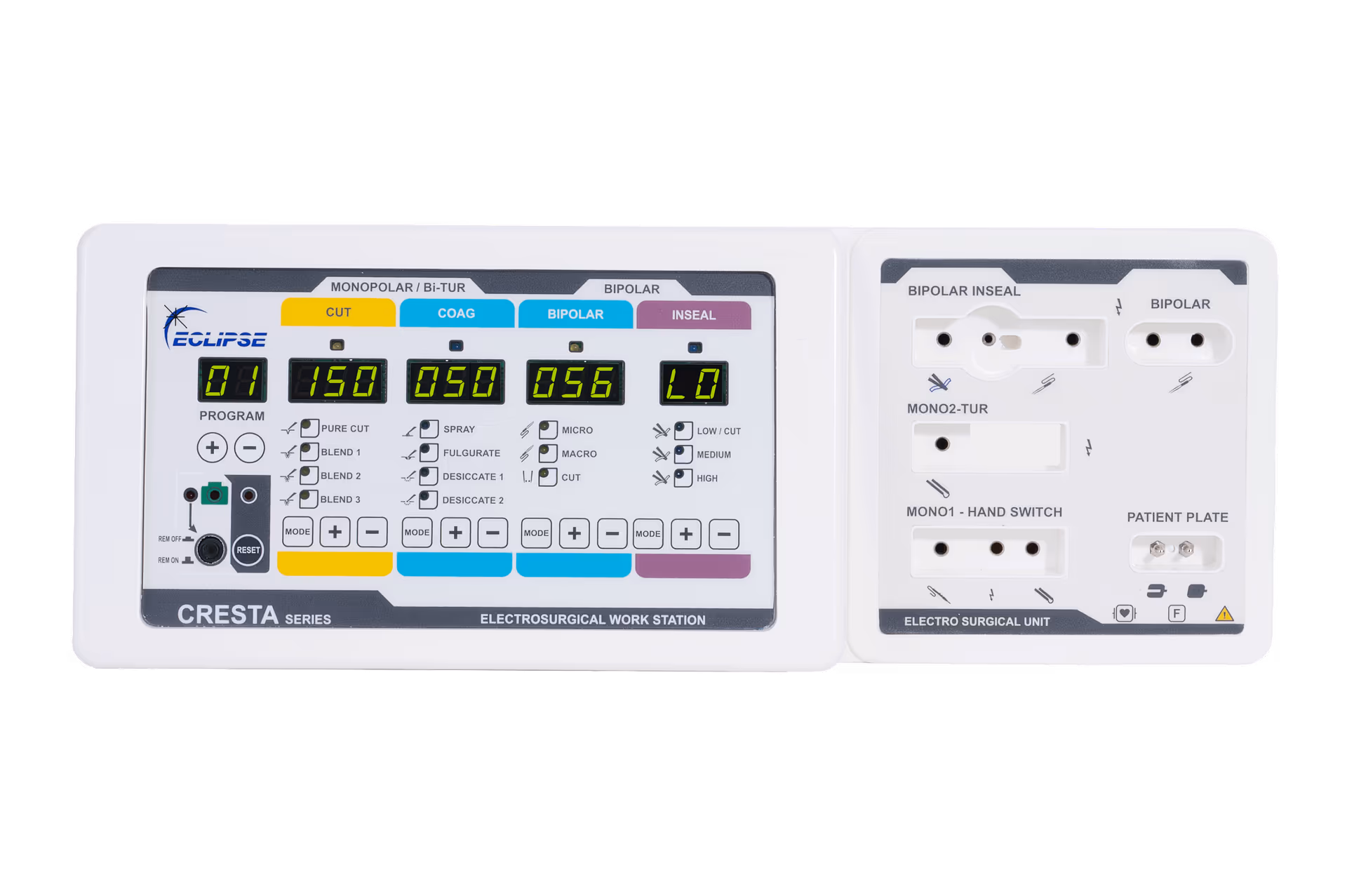

Cresta Is
Split-port vessel sealer with monopolar and bipolar.
- OutputsOne Monopolar, One Bipolar, Vessel Sealer
- Display7-segment LED
- Vessel SealerYes
- Saline BipolarNA
- Port configurationSplit (Bipolar and Vessel Sealer)

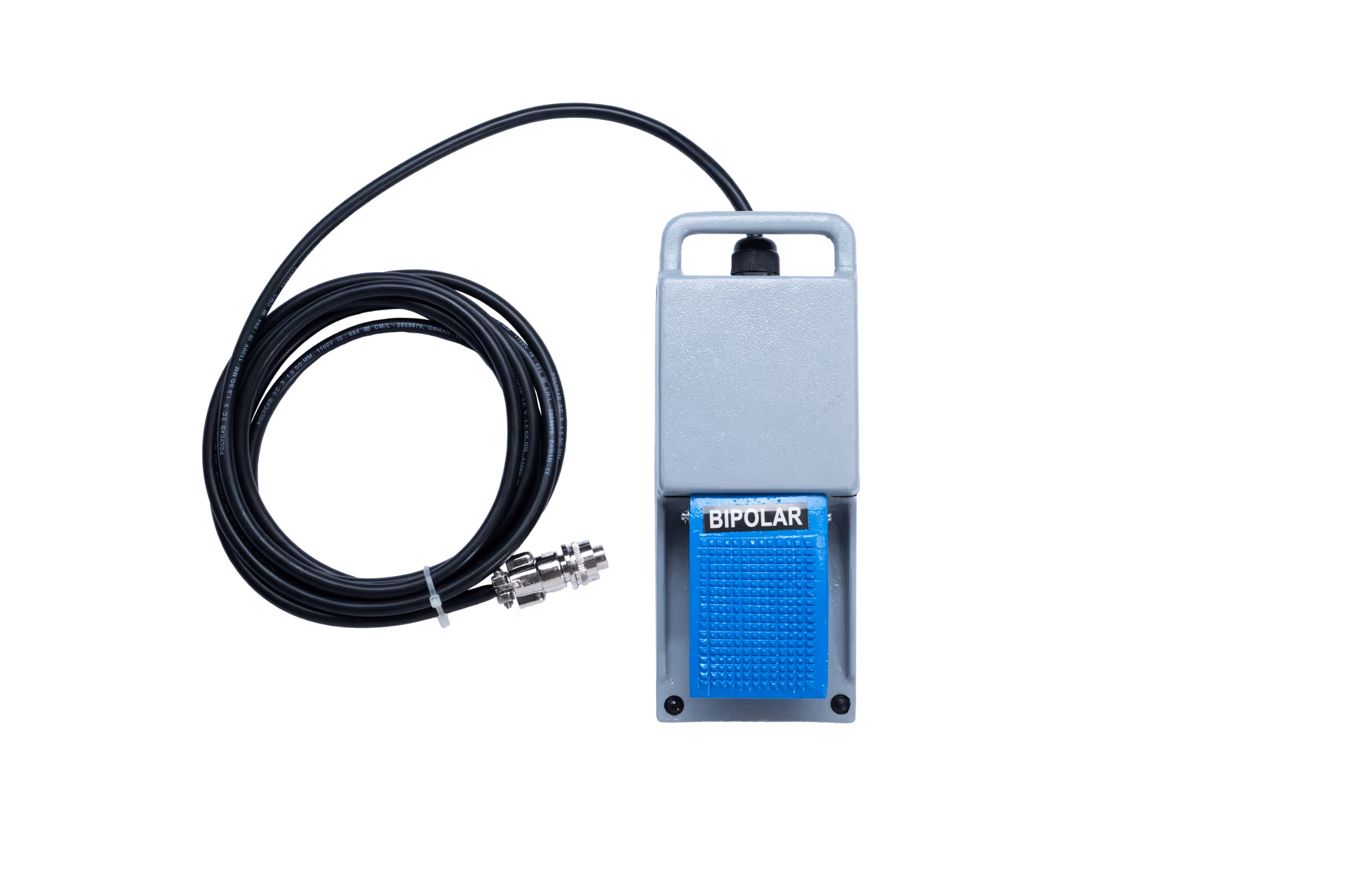

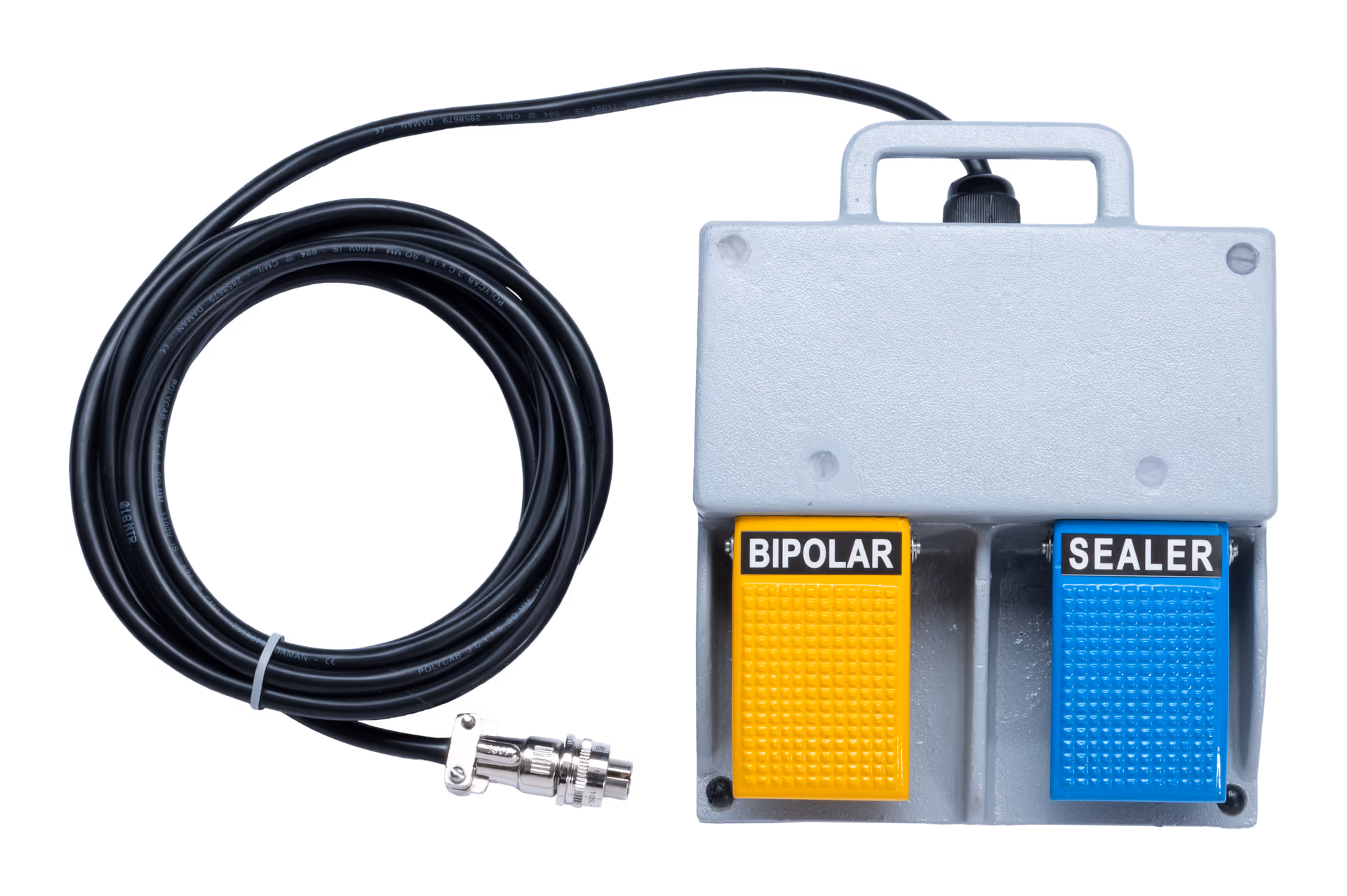

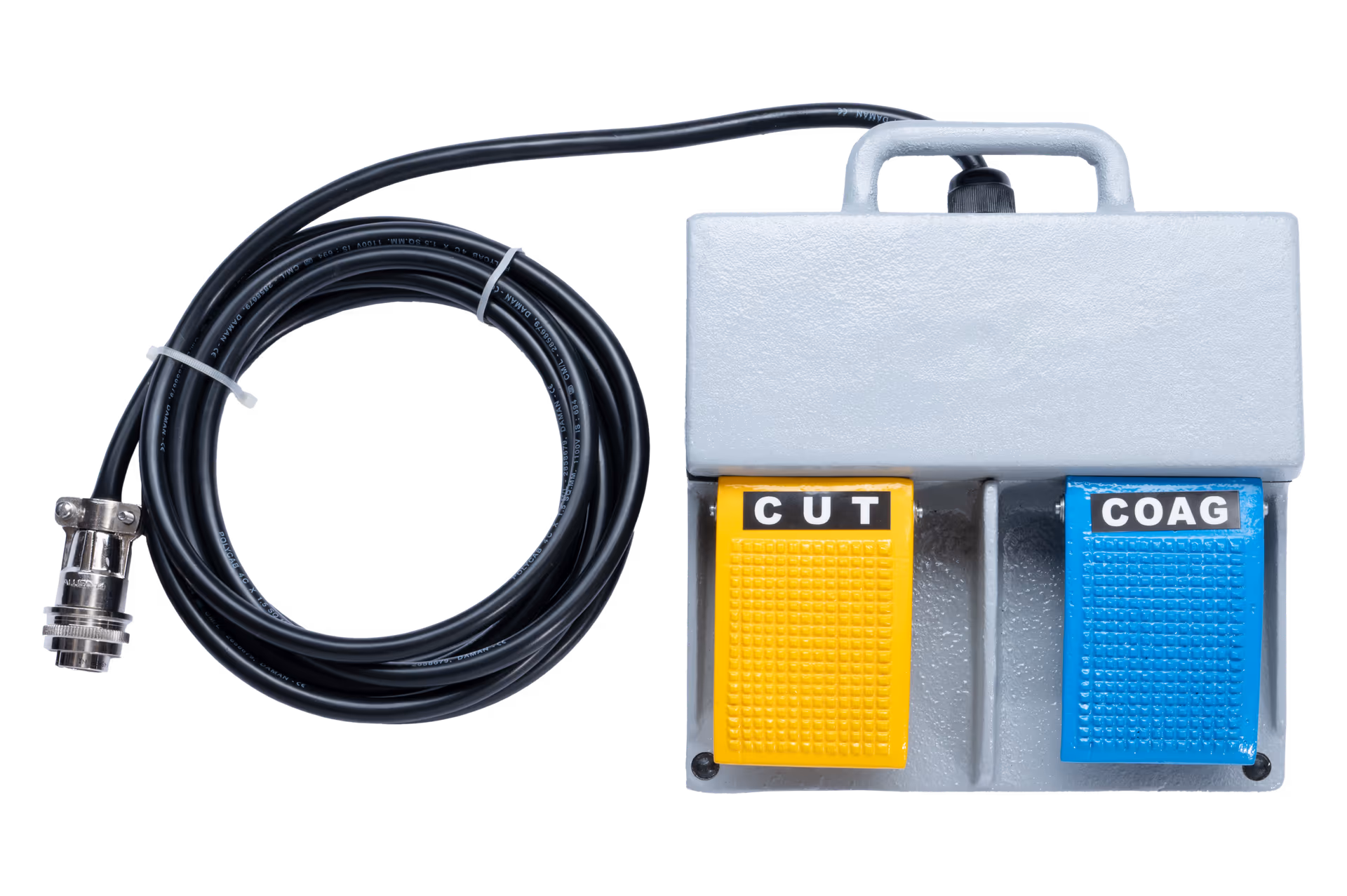

Accessories
View all accessories
Specifications
| Parameter | B | B+ | Is | Ic | I+s | I+c | Ws | Wc |
|---|---|---|---|---|---|---|---|---|
| Monopolar outputs | 1 | 2 | 1 | 1 | 2 | 2 | 1 | 1 |
| Monopolar Cut / Pure cut @ 500 Ω | 300 W | 300 W | 300 W | 300 W | 300 W | 300 W | 300 W | 300 W |
| Monopolar Cut / Blend 1 @ 500 Ω | 250 W | 250 W | 250 W | 250 W | 250 W | 250 W | 250 W | 250 W |
| Monopolar Cut / Blend 2 @ 500 Ω | 200 W | 200 W | 200 W | 200 W | 200 W | 200 W | 200 W | 200 W |
| Monopolar Cut / Blend 3 @ 500 Ω | 200 W | 200 W | 200 W | 200 W | 200 W | 200 W | 200 W | 200 W |
| Monopolar Coag / Spray @ 300 Ω | 80 W | 80 W | 80 W | 80 W | 80 W | 80 W | 80 W | 80 W |
| Monopolar Coag / Fulgurate @ 300 Ω | 120 W | 120 W | 120 W | 120 W | 120 W | 120 W | 120 W | 120 W |
| Monopolar Coag / Desiccate 1 @ 500 Ω | 150 W | 150 W | 150 W | 150 W | 150 W | 150 W | 150 W | 150 W |
| Monopolar Coag / Desiccate 2 @ 500 Ω | 150 W | 150 W | 150 W | 150 W | 150 W | 150 W | 150 W | 150 W |
| Bipolar outputs | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Bipolar / Micro @ 100 Ω | 80 W | 80 W | 80 W | 80 W | 80 W | 80 W | 80 W | 80 W |
| Bipolar / Macro @ 100 Ω | 80 W | 80 W | 80 W | 80 W | 80 W | 80 W | 80 W | 80 W |
| Bipolar / Cut @ 100 Ω | 120 W | 120 W | 120 W | 120 W | 120 W | 120 W | 120 W | 120 W |
| Vessel Sealer outputs | - | - | 1 | 1 | 1 | 1 | - | 1 |
| Vessel Sealer / L1–L2 @ 150 Ω | - | - | 110 W | 110 W | 110 W | 110 W | - | 110 W |
| Vessel Sealer / A1–A2 @ 150 Ω | - | - | 130 W | 130 W | 130 W | 130 W | - | 130 W |
| Vessel Sealer / H1–H2 @ 150 Ω | - | - | 150 W | 150 W | 150 W | 150 W | - | 150 W |
| Saline Bipolar outputs | - | - | - | - | - | - | 1 | 1 |
| Saline Bipolar / Cut @ 100 Ω | - | - | - | - | - | - | 300 W | 300 W |
| Saline Bipolar / Coag @ 100 Ω | - | - | - | - | - | - | 250 W | 250 W |
| Operating Frequency | 450 kHz | 450 kHz | 450 kHz | 450 kHz | 450 kHz | 450 kHz | 450 kHz | 450 kHz |
| Display | 7-segment LED | 7-segment LED | 7-segment LED | 7-segment LED | 7-segment LED | 7-segment LED | 7-segment LED | 7-segment LED |
| Program Manager profiles | Up to 100 | Up to 100 | Up to 100 | Up to 100 | Up to 100 | Up to 100 | Up to 100 | Up to 100 |
| Weight | <10 kg | <10 kg | <10 kg | <10 kg | <10 kg | <10 kg | <10 kg | <10 kg |
| Dimensions (W × D × H) | 410 mm × 160 mm × 480 mm | 410 mm × 160 mm × 480 mm | 410 mm × 160 mm × 480 mm | 410 mm × 160 mm × 480 mm | 410 mm × 160 mm × 480 mm | 410 mm × 160 mm × 480 mm | 410 mm × 160 mm × 480 mm | 410 mm × 160 mm × 480 mm |
| Input Supply | 230 V ±10%, 50 Hz | 230 V ±10%, 50 Hz | 230 V ±10%, 50 Hz | 230 V ±10%, 50 Hz | 230 V ±10%, 50 Hz | 230 V ±10%, 50 Hz | 230 V ±10%, 50 Hz | 230 V ±10%, 50 Hz |
| Operating Temperature | +10°C to +40°C | +10°C to +40°C | +10°C to +40°C | +10°C to +40°C | +10°C to +40°C | +10°C to +40°C | +10°C to +40°C | +10°C to +40°C |
| Operating Humidity | 15% to 85% non-condensing | 15% to 85% non-condensing | 15% to 85% non-condensing | 15% to 85% non-condensing | 15% to 85% non-condensing | 15% to 85% non-condensing | 15% to 85% non-condensing | 15% to 85% non-condensing |
| Operating Atmospheric Pressure | 700 to 1060 millibars | 700 to 1060 millibars | 700 to 1060 millibars | 700 to 1060 millibars | 700 to 1060 millibars | 700 to 1060 millibars | 700 to 1060 millibars | 700 to 1060 millibars |
| Transport & Storage Temperature | -10°C to +60°C | -10°C to +60°C | -10°C to +60°C | -10°C to +60°C | -10°C to +60°C | -10°C to +60°C | -10°C to +60°C | -10°C to +60°C |
| Transport & Storage Humidity | 15% to 90% | 15% to 90% | 15% to 90% | 15% to 90% | 15% to 90% | 15% to 90% | 15% to 90% | 15% to 90% |
Frequently asked questions
- How does Cresta Digital differ from Cresta Touch?
- Cresta Digital uses a 7-segment LED keypad interface and SafeTis tissue feedback. Cresta Touch uses a 7" capacitive touchscreen and SafeZ.Source: Cresta Digital brochure
- Which configurations include vessel sealing and saline bipolar?
- Is, Ic, I+s, I+c, and I2B include vessel sealing. Ws and Wc add ReSaliX saline bipolar alongside monopolar, bipolar, and vessel sealer outputs.Source: Cresta Digital brochure configurations
- How many Program Manager profiles are supported?
- Up to 100 custom profiles can be stored and recalled on Cresta Digital.Source: Cresta Digital brochure
- Which mode families does Cresta Digital support?
- Monopolar cut and coagulation, bipolar micro/macro/cut, SureBind vessel sealing, and ReSaliX saline bipolar are available depending on configuration.Source: Cresta Digital brochure
- How do I choose between Cresta Digital configurations?
- Start from monopolar-bipolar B or B+, add vessel sealing on Is/Ic/I+s/I+c/I2B variants, or specify Ws/Wc for full modality including saline bipolar. Each SKU has a dedicated configuration page with output layout and power tables.Source: Cresta Digital brochure ordering information
