Pulse A compute and software
Pulse A runs on a quad-core Cortex-A76 CPU. Streaming uses Infini Strima Mini. Infini OneView is the shared NAS software bundle, included when the project requires central media storage.
OR Integration
Infini Pulse
Smart video recording and live streaming with integrated audio.
Infini Pulse (A) is an advanced OR integration solution with video recording and live streaming, plus an integrated wireless microphone for audio. It is purpose-built to improve documentation accuracy and team collaboration in surgical environments.
The system supports multiple 4K inputs with Full HD recording and multiview (PIP/PAP/Quad) display, controlled from an intuitive 7-inch touchscreen on a quad-core Cortex-A76 platform. Available in fixed cabinet and mobile trolley formats.
Purpose-built capabilities
What Infini Pulse (A) delivers
Multi-channel 4K input and loop-out
Simultaneously accepts up to four 4K video inputs with a 4K loop-out option.
PIP, PAP, and Quad multiview
Picture-in-Picture, Picture-and-Picture, and Quad formats for parallel visualization of four sources in Full HD.
Integrated camera control
7" touchscreen interface for PTZ and surgical camera control, preview, and source selection.
Secure live streaming
Stream in real time across the hospital LAN with end-to-end encryption.
Wireless mic integration
Hands-free operation for synchronized audio-video documentation.
External storage options
Save recordings to USB drive or USB disk, with NAS support.
Integrated 24" Full HD monitor
Real-time preview with accurate colour. 4K or medical-grade upgrade available.
Mobile trolley configuration
Optional compact wheeled trolley with optional camera spring arm.
Remote-controlled operation
Designed for sterile environments where direct interaction is limited.

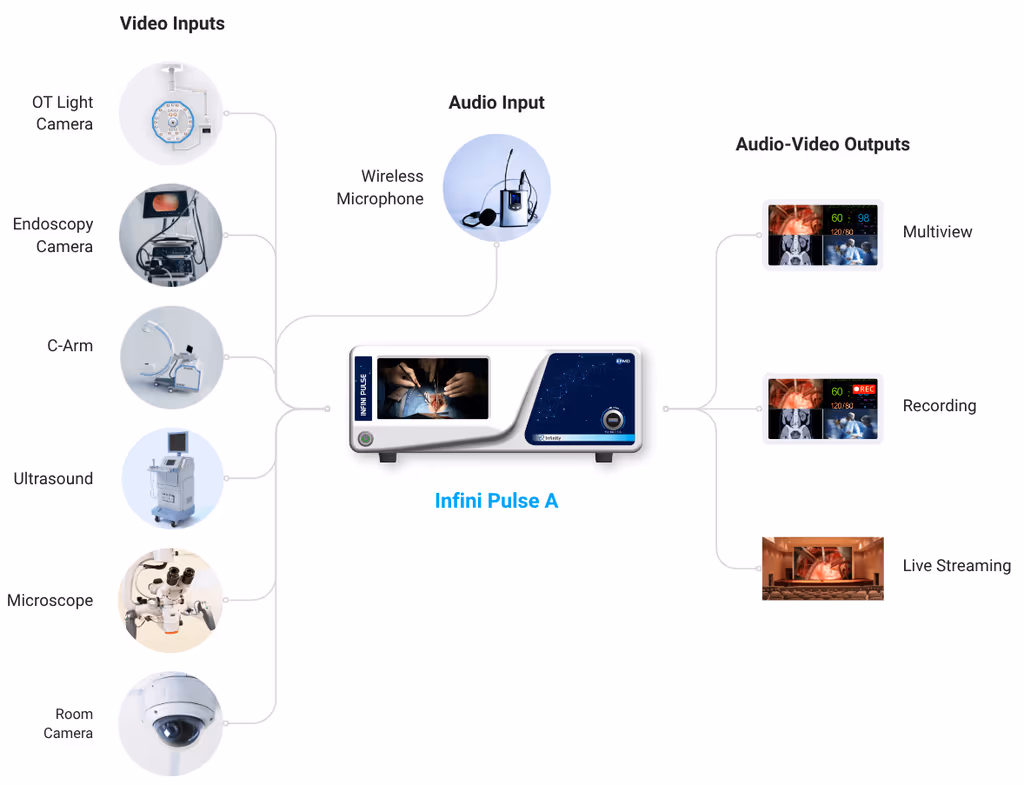

System overview
From surgical sources to documentation outputs
Supported video inputs include OT light cameras, endoscopy cameras, C-arms, ultrasound, microscopes, and room cameras.
Audio-video outputs cover multiview, recording, and live streaming. Wireless microphone input keeps procedural commentary synchronized with documentation for teaching and case review.
Formats
Cabinet and trolley configurations
Build from a cabinet desktop unit, then add InfiniCart P and optional Infini Cam cameras for mobile documentation.

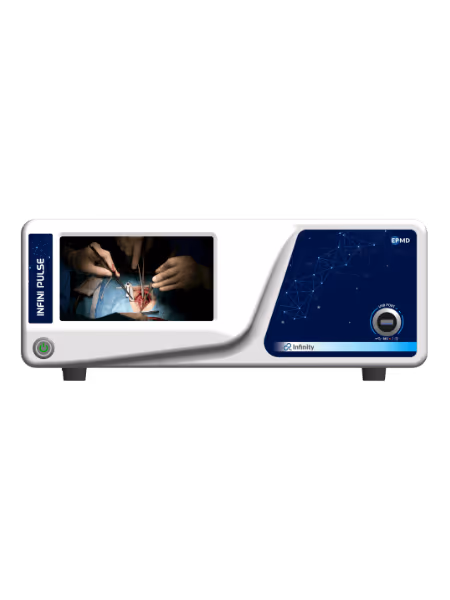

Cabinet (Desktop)
Fixed Infini Pulse cabinet for in-room recording and streaming.

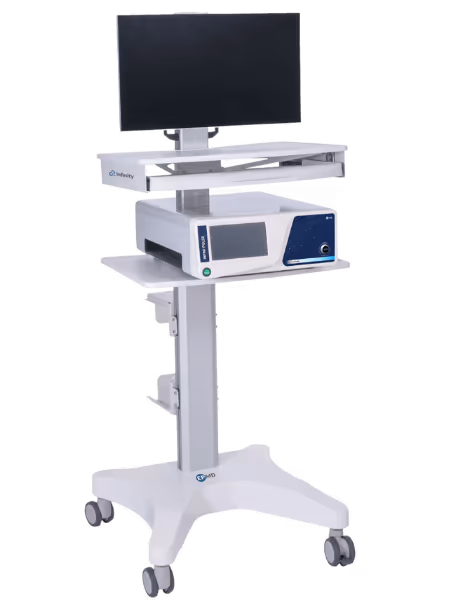

Cabinet with trolley

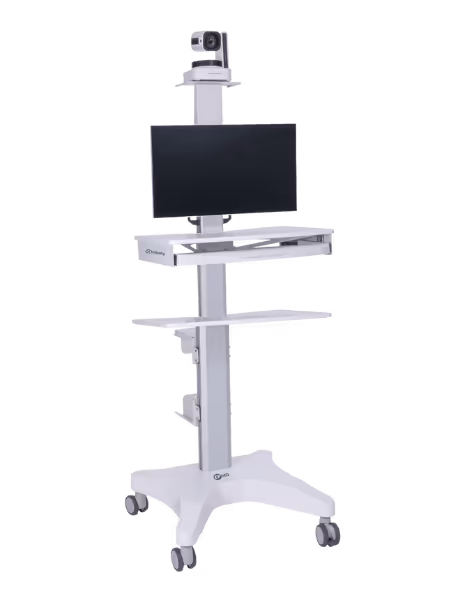

InfiniCart P converts the cabinet into a mobile documentation station.

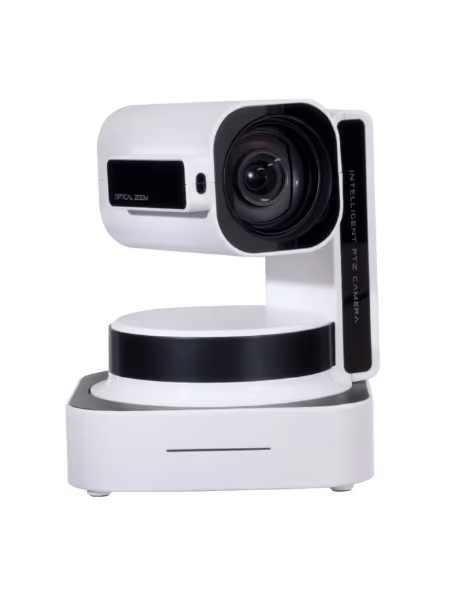

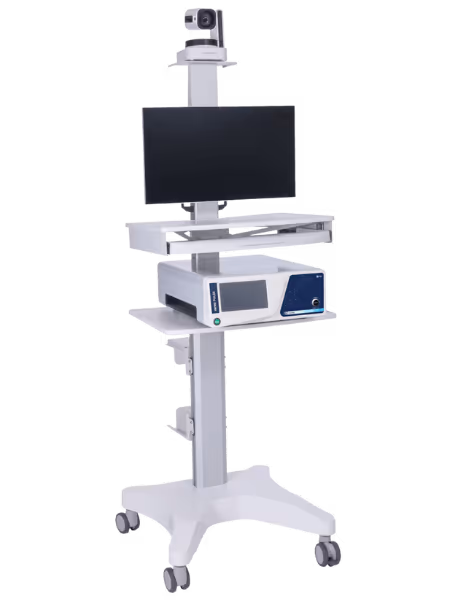

Trolley with PTZ camera
Add Infini Cam R 4K for room observation and teaching capture.

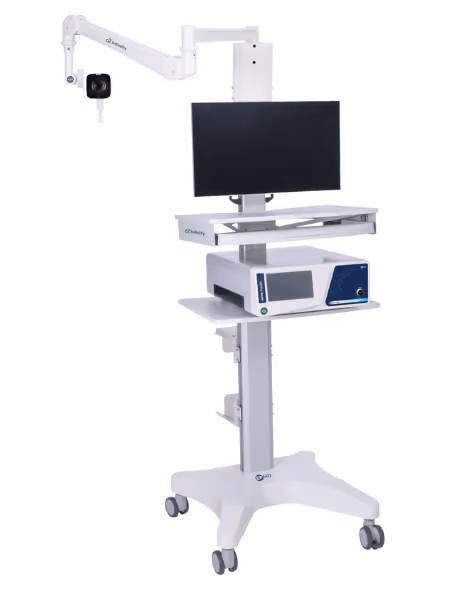

Trolley with surgical camera

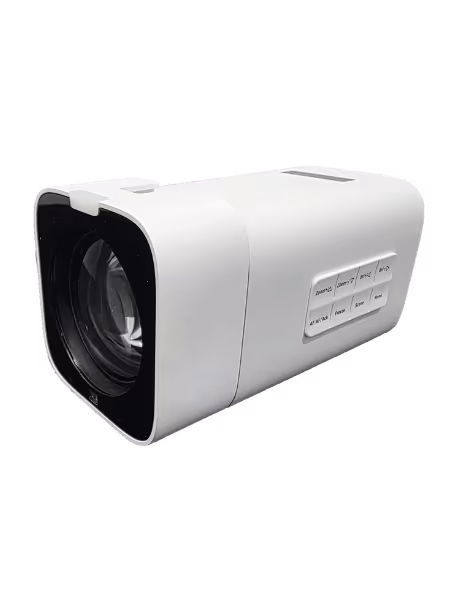

Add Infini Cam S 4K for surgical block camera documentation.

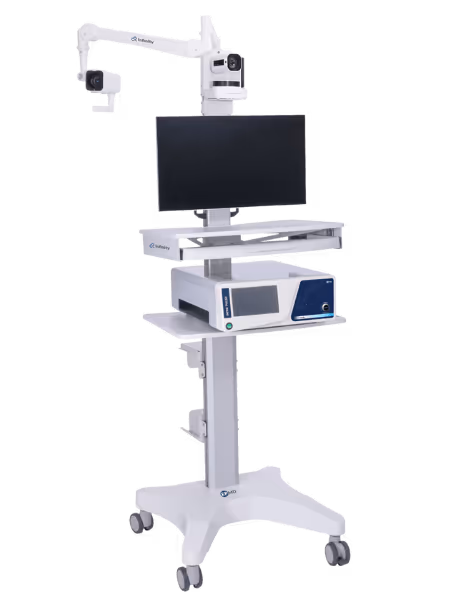

Trolley with PTZ and surgical camera
Full mobile package with both Infini Cam R and Infini Cam S.
Infini Pulse B
Video conferencing for the wider hospital
Pulse B ships with an added PC for video conferencing via Infini Conexa. B(M) is the mobile trolley option for telemedicine, remote consultations, and interactive teaching across OTs, lecture halls, and offices.
Integrated 4K webcam
Sharp video capture for training and consultations, with AI speaker tracking and a 94° diagonal field of view.
Built-in Windows PC
Dedicated conferencing PC with Infini Conexa, plus Zoom, Teams, Meet, and similar apps on Windows or Linux.
Hospital-wide collaboration
Remote consultations, teaching sessions, and multi-party video conferencing beyond the sterile field.
B(M) mobile trolley
B(M) is the trolley version of Pulse B for easy movement between OTs, lecture halls, and offices.
Plug-and-play connectivity
Quick setup to minimise downtime between rooms and sessions.
24" Full HD display
Clear visuals for video calls. 4K upgrade available.
Secure clinical communications
Hospital-network conferencing with access control suited to clinical collaboration.
In detail
Touch control in the sterile workflow
A 7" touchscreen handles preview, recording, source selection, and PTZ or surgical camera control. Remote-controlled operation supports environments where direct interaction is limited.
Fixed cabinet or mobile trolley
Specify cabinet-only, cabinet with InfiniCart P, and optional Infini Cam R/S cameras with spring arm when the programme needs mobile documentation or room capture.
Video conferencing (Pulse B / B(M))
Pulse B adds a dedicated PC for video conferencing with Infini Conexa. B(M) is the mobile trolley version for telemedicine, remote consultations, and teaching across the hospital.
Configurations
View all configurationsInfini Pulse 1A
1 input recording and streaming with wireless mic.
- Description1 Input Recording and Streaming with wireless mic
- Recording Resolution1080p
- ProcessorQuad-core Cortex-A76 CPU
Infini Pulse 2A
2 input recording and streaming with wireless mic.
- Description2 Input Recording and Streaming with wireless mic
- Recording Resolution1080p
- ProcessorQuad-core Cortex-A76 CPU
Infini Pulse 4A
4 input recording and streaming with wireless mic.
- Description4 Input Recording and Streaming with wireless mic
- Recording Resolution1080p
- ProcessorQuad-core Cortex-A76 CPU
Specifications
| Parameter | Infini Pulse 1A | Infini Pulse 2A | Infini Pulse 4A |
|---|---|---|---|
| Description | 1 Input Recording and Streaming with wireless mic | 2 Input Recording and Streaming with wireless mic | 4 Input Recording and Streaming with wireless mic |
| Processor | Quad-core Cortex-A76 | Quad-core Cortex-A76 | Quad-core Cortex-A76 |
| Streaming Software | Infini Strima Mini | Infini Strima Mini | Infini Strima Mini |
| NAS Software | Infini OneView (by project need) | Infini OneView (by project need) | Infini OneView (by project need) |
| Video Input (SDI) | - | - | 1 × 3G SDI 1080p 60 |
| Video Input (HDMI) | 1 × 4K 60 | 2 × 4K 60 | 3 × 4K 60 |
| Video Output | 1 × 4K 60 (Loop out) | 1 × 4K 60 (Loop out) | 1 × 4K 60 (Loop out) |
| Audio | Wireless Microphone | Wireless Microphone | Wireless Microphone |
| Other Interfaces | USB 3.0 (Type A), RJ45 | USB 3.0 (Type A), RJ45 | USB 3.0 (Type A), RJ45 |
| Primary Display | 7" Touchscreen | 7" Touchscreen | 7" Touchscreen |
| Secondary Display | 24" Non-Touch FHD | 24" Non-Touch FHD | 24" Non-Touch FHD |
| Recording Format | MPEG 4 (H.264/H.265 + AAC) | MPEG 4 (H.264/H.265 + AAC) | MPEG 4 (H.264/H.265 + AAC) |
| Recording Resolution | 1080p | 1080p | 1080p |
| Storage | USB 2.0 HDD, NAS | USB 2.0 HDD, NAS | USB 2.0 HDD, NAS |
| Streaming Resolution | 4K 60, 1080p 60 | 4K 60, 1080p 60 | 4K 60, 1080p 60 |
| Multiview Layout | - | Single, PIP, PAP | Single, PIP, PAP, Quad |
| Order Code | LF90354 | LF90355 | LF90356 |
Frequently asked questions
- How do Infini Pulse 1A, 2A, and 4A differ?
All three record and stream with a wireless microphone on a quad-core Cortex-A76 platform using Infini Strima Mini. 1A has one 4K HDMI input. 2A has two HDMI inputs with Single, PIP, and PAP multiview. 4A has three HDMI inputs plus one 3G SDI input, and adds Quad multiview.
Source: Infini Pulse brochure specifications- What is the difference between Pulse B and B(M)?
Pulse B is the video conferencing configuration with a dedicated PC running Infini Conexa. B(M) is the mobile trolley version of Pulse B for movement between OTs, lecture halls, and offices.
Source: Infini Pulse product configuration guidance- Which Infini software does Pulse support?
Pulse A uses Infini Strima Mini for streaming. Infini OneView is the common NAS software bundle when the project needs central media storage. Pulse B / B(M) use Infini Conexa for video conferencing.
Source: Infini Pulse software bundling- Which cameras and mounts are available?
Optional accessories include InfiniCart P (trolley), Infini Cam R 4K (PTZ room camera), Infini Cam S 4K (surgical block camera), and a camera spring arm for surgical camera mounting.
Source: Infini Pulse brochure ordering information- Is live streaming secured?
Yes. Infini Pulse streams in real time across the hospital LAN with end-to-end encryption.
Source: Infini Pulse brochure key features
