Medical video recording, live streaming, routing, and conferencing with integrated audio.
Infini Connect (A) is an advanced OR integration solution featuring video recording with patient data, live streaming, and video conferencing, plus an integrated wireless microphone for audio. It combines advanced video capture with real-time surgical collaboration and training.
Clinicians can host live case discussions, remote consultations, and educational sessions directly from the operating room. Each case can be documented with patient, doctor, and procedure details. Available in both in-room (cabinet) and mobile formats.
Accepts up to four 4K video inputs with 4K loop-out.
Supports multiple view formats for documentation of up to four sources in Full HD.
21.5" touchscreen interface for live preview and precise control of PTZ and surgical cameras.
Real-time streaming across the hospital LAN with end-to-end encryption.
High-quality procedural commentary with synchronized audio-video.
Secure local storage with options to export to USB or network drives.
Conduct secure remote consultations directly from the OR.
Input patient and doctor details plus doctor notes for organized case retrieval.
DICOM compatible; integrates with PACS/VNA/NAS and HIS systems.
Optional compact wheeled trolley with camera spring arm.

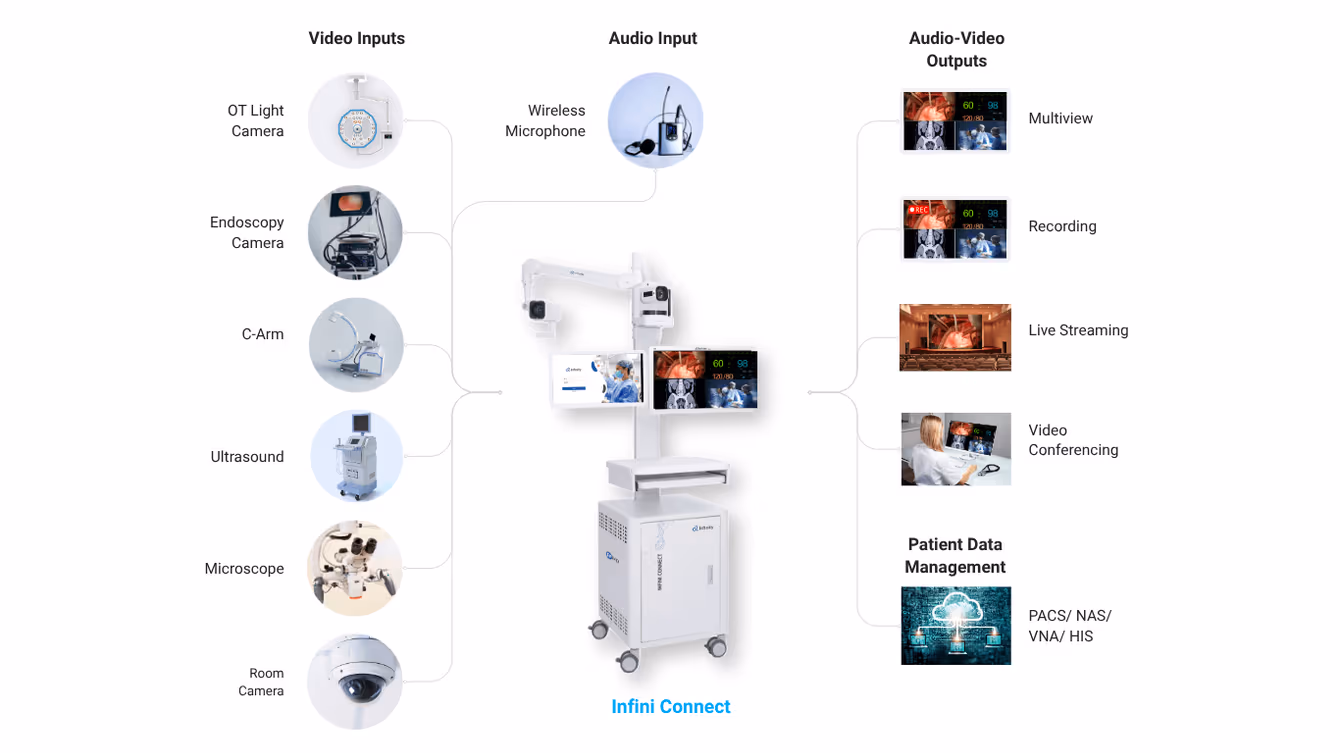

Supported video inputs include OT light cameras, endoscopy cameras, C-arms, ultrasound, microscopes, and room cameras.
Audio-video outputs cover multiview, recording, live streaming, video conferencing, patient data management, and PACS/NAS/VNA/HIS connectivity.
Build from trolley or cabinet formats, then add Infini Cam cameras and dual monitors when the programme needs room and surgical capture.

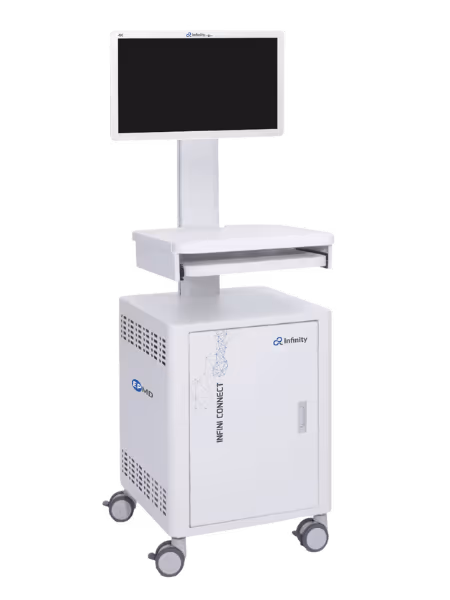

Mobile Infini Connect A for multi-room documentation and collaboration.

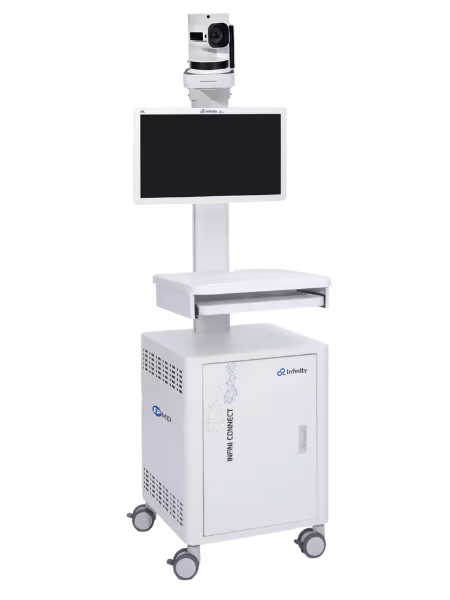

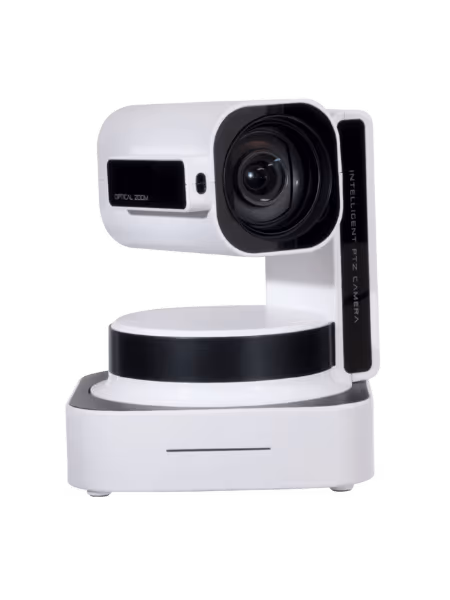

Add Infini Cam R 4K for room observation and teaching capture.

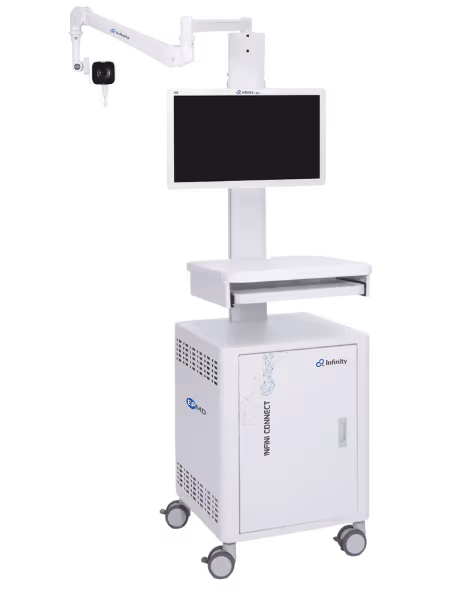

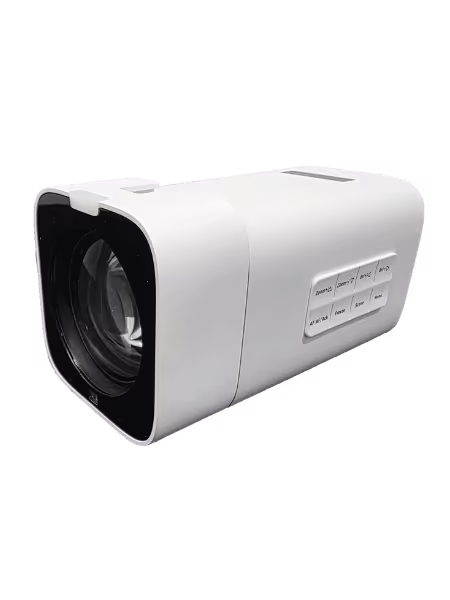

Add Infini Cam S 4K for surgical block camera documentation.

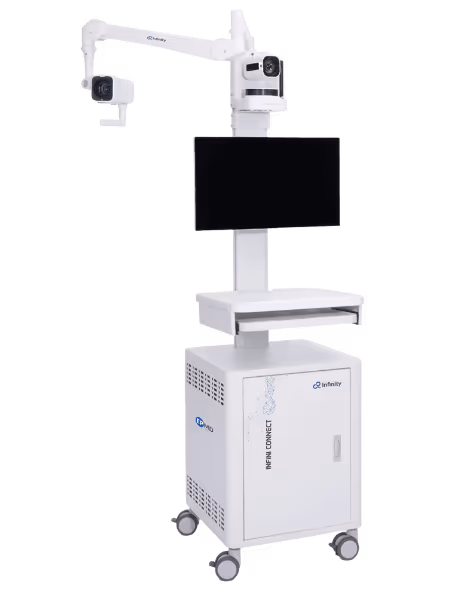

Combined room and surgical camera package on a Connect A trolley.

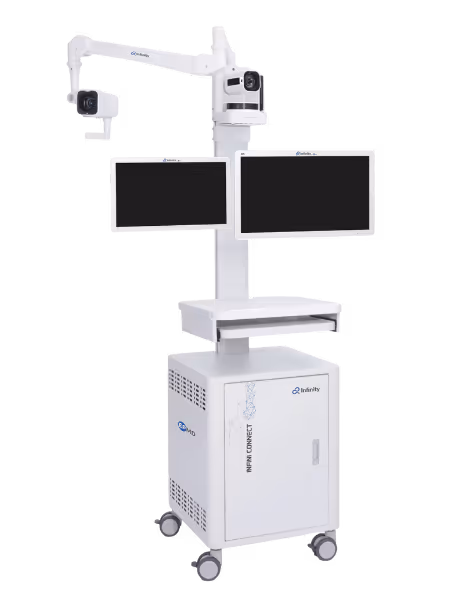

PTZ and surgical cameras plus dual monitors for extended visualization.

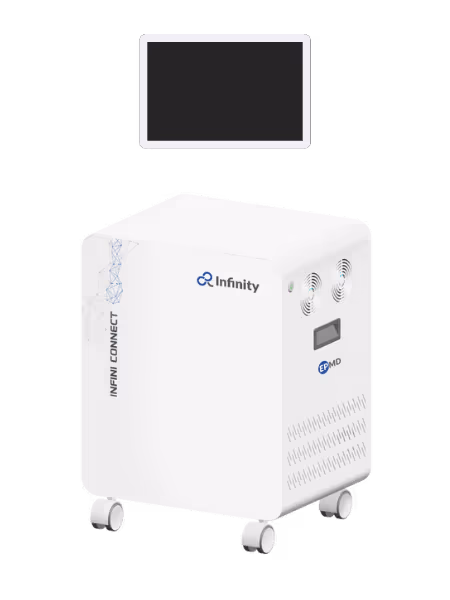

In-wall or in-room Connect A or B cabinet with flush mount display options.
Connect B is a comprehensive platform that unifies surgical video management, recording, streaming, and conferencing. Supporting up to eight video inputs and outputs, any source can be routed to any display inside or outside the OT.
Supports up to eight simultaneous 4K video inputs.
Real-time routing of any 4K source to up to eight displays.
Allows simultaneous narration from two surgeons.
Unifies recording, multiview management, and conferencing in one system.
Supports optional monitors with flush, wall, or ceiling mounts.
Infini Connect (A) combines multi-channel 4K recording with patient data, live streaming, video conferencing, and an integrated wireless microphone - available as in-room cabinet or mobile trolley formats.
Infini Connect (B) unifies surgical video management, recording, streaming, and conferencing in one system. Route any of up to eight sources to any display inside or outside the OT, with dual wireless microphones for two-surgeon narration.
A and B configurations run Windows 11 on an i5 12th Gen (6-core) platform with 16 GB DDR4 and a 21.5" touchscreen for live preview, camera control, and case documentation.
Connect ships with the Infini software suite - including OneView, Strima, and Conexa - by default at the lowest configuration. Alternate software configurations can be requested by the client.
Connect C is a true 4K60 4:4:4 encode/decode path with a managed switch. Connect software handles multiview and routing; recording uses PCIe capture. Full AVoIP specifications will expand in a dedicated brochure.
2 input medical recording, streaming, and conferencing.
Trolley version of Connect 2A.
4 input medical recording, streaming, and conferencing.
| Parameter | Infini Connect 2A | Infini Connect 4A |
|---|---|---|
| Description | 2 Input Medical Recording, Streaming & Conferencing | 4 Input Medical Recording, Streaming & Conferencing |
| Video Input (SDI) | - | 1 × 3G SDI 1080p 60 |
| Video Input (HDMI) | 2 × 4K 60 | 3 × 4K 60 |
| Video Output | 1 × 4K 60 (Loop out) | 1 × 4K 60 (Loop out) |
| Audio | Wireless Microphone | Wireless Microphone |
| Primary Display | 21.5" Touchscreen | 21.5" Touchscreen |
| Recording Format | MPEG 4 (H.264/H.265 + AAC) | MPEG 4 (H.264/H.265 + AAC) |
| Internal Storage | 1TB SSD | 1TB SSD |
| Patient Data Management | Yes (Patient/Doctor/Procedure Details) | Yes (Patient/Doctor/Procedure Details) |
| DICOM Compatible | Yes | Yes |
| Multiview Layout | Single, PIP and PAP | Single, PIP, PAP and Quad |
| Computer OS | Windows 11 | Windows 11 |
| Processor | i5 12th Gen, 6 Core | i5 12th Gen, 6 Core |
| RAM | 16 GB DDR4 | 16 GB DDR4 |
| Order Code (Cabinet) | LF90358 | LF90360 |
| Order Code (Trolley / M) | LF90359 | LF90361 |
Connect A focuses on medical recording, streaming, and conferencing with patient data management (2A/4A cabinet or trolley). Connect B is a fully integrated OR platform with multi-source 4K routing - 4B is 4×4 and 8B is 8×8 - plus dual wireless microphones.
Source: Infini Connect brochure overview2A(M) and 4A(M) are the trolley versions of Connect 2A and 4A. Cabinet codes are LF90358/LF90360; trolley codes are LF90359/LF90361.
Source: Infini Connect brochure ordering informationConnect ships with the Infini software suite - including OneView, Strima, and Conexa - by default at the lowest configuration. Clients can request alternate software configurations.
Source: Infini Connect software guidanceYes. Connect A is DICOM compatible and integrates with PACS, VNA, NAS, and HIS systems for organized case retrieval.
Source: Infini Connect brochure key featuresConnect C is a true 4K60 4:4:4 encode/decode solution with a managed switch for distributed OR video. Connect software provides multiview and routing; recording uses PCIe capture. Detailed specifications will expand in a dedicated AVoIP brochure.

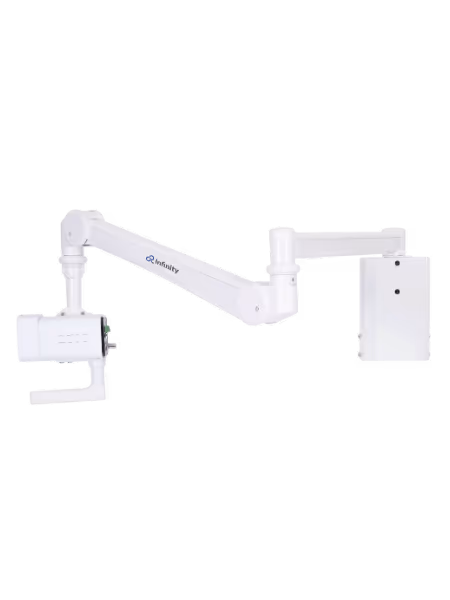

Source: Infini Connect C product guidanceOptional accessories include Infini Cam R 4K (PTZ room camera), Infini Cam S 4K (surgical block camera), and a camera spring arm for surgical camera mounting.
