Operating Room Lights

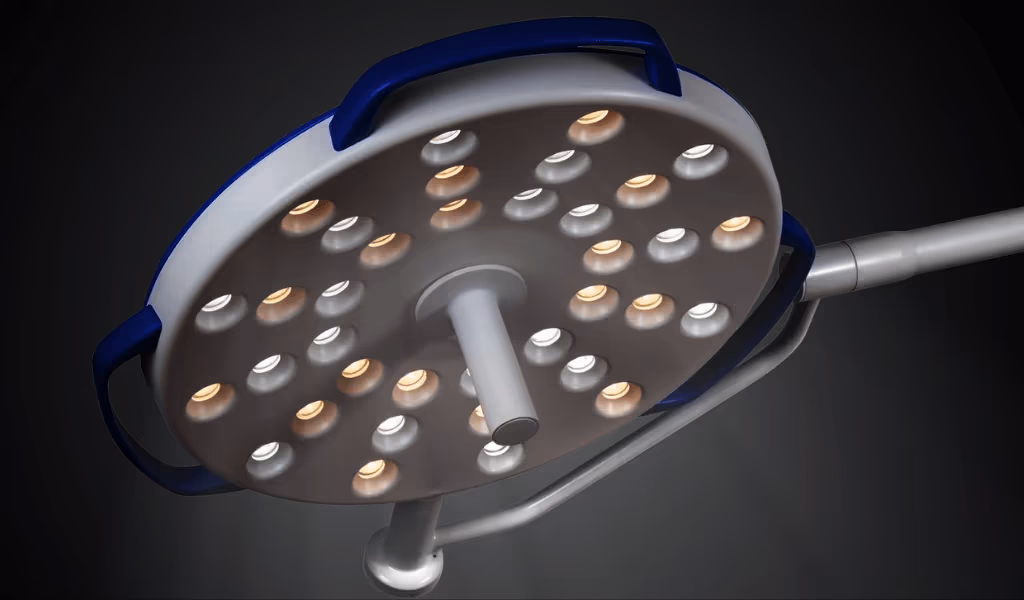

Luminox Series
Compact examination and surgical light - engineered for everyday clinical work with surgical-grade clarity.
Engineered for the everyday - every examination, every minor and major procedure, every bedside intervention illuminated with surgical-grade clarity.
The Luminox Series condenses the optical performance hospitals expect from a full operating-theatre light into a compact, energy-efficient, easy-to-deploy unit - built for the working majority of clinical interventions.
Purpose-built
What Luminox delivers
High-intensity illumination, manoeuvrability, dome controls, and daylight-true colour in a compact form factor suited to procedure rooms and versatile surgical lists.
High-intensity illumination
Bright, uniform, shadow-managed output across the full operating field at 1 metre.
Multi-axis manoeuvrability
Spring-balanced arm lifts, tilts, pivots, and rotates - locking firmly at any chosen position.
Integrated dome controls
On-head buttons for instant intensity adjustment without a separate control panel.
Cool, energy-efficient LEDs
Low-power LED engine with minimal heat emission for patient and surgeon comfort.
Compact, streamlined design
Modern aerodynamic shape reduces visual obstruction and supports airflow around the head.
Daylight-true colour
Variable colour temperature from 3000 K to 6500 K with high-fidelity rendering for tissue visualization.
60,000+ hour LED life
Long-life LED service span built for high-utilisation hospitals with minimal replacement cycles.
Smooth, easy-clean housing
Open-type rounded body with no sharp corners - every surface wipes down hygienically.
High depth of illumination
Powerful, uniform light with clear visibility and enhanced depth across the cavity.
Globally certified
ISO 13485 manufacturing with CE marking and CDSCO compliance for international tenders.
Performance and clarity
Surgical-grade clarity in a compact unit
The Luminox condenses the optical performance hospitals expect from a full operating-theatre light into a compact, energy-efficient, easy-to-deploy unit.
Built for the working majority of clinical interventions - from examination and minor procedures through to demanding surgical lists that need readable tissue colour and depth.
Key features
Operational modes and on-head control
Multi-colour LEDs support variable colour temperature modes from 3000 K through 6500 K. Luminox 500 adds Smart Focus control with Narrow and Broad operational modes.
Aluminium plate with LED PCB
Mounted on an ABS base for efficient thermal management and stable output.
Sterilisable handle
Aseptic control from the sterile field during surgery.
Multi-colour LEDs
Variable colour temperature modes within 3000 K - 6500 K for tissue visualization.
Ergonomic design
Shaped for better grip and confident positioning.
Keypad control panel
Intuitive on-dome interface for intensity and mode control.
Smart focus control
Luminox 500: Narrow and Broad modes for different field requirements.
Focus modes
Focus for the procedure in front of you
The field changes with the cavity. Four modes cover open work, small cavities, deep sites, and endoscopic ambient lighting.
Broad Focus Mode
Wider field for open procedures and broader tissue coverage on Luminox 500.
In the field
Compact light, full clinical capability
From candle-light warmth at 1500 K through halogen and daylight noon to clear blue sky at 9500 K, multi-colour LEDs let teams tune the field to the procedure - while Luminox 500 focus modes shape the beam for open or focused work.
Variants
Luminox 300 or Luminox 500 - choose the head for the list
Both variants share the same mount matrix and accessory ecosystem. What changes is head size, illuminance, colour tuning, and focus capability.

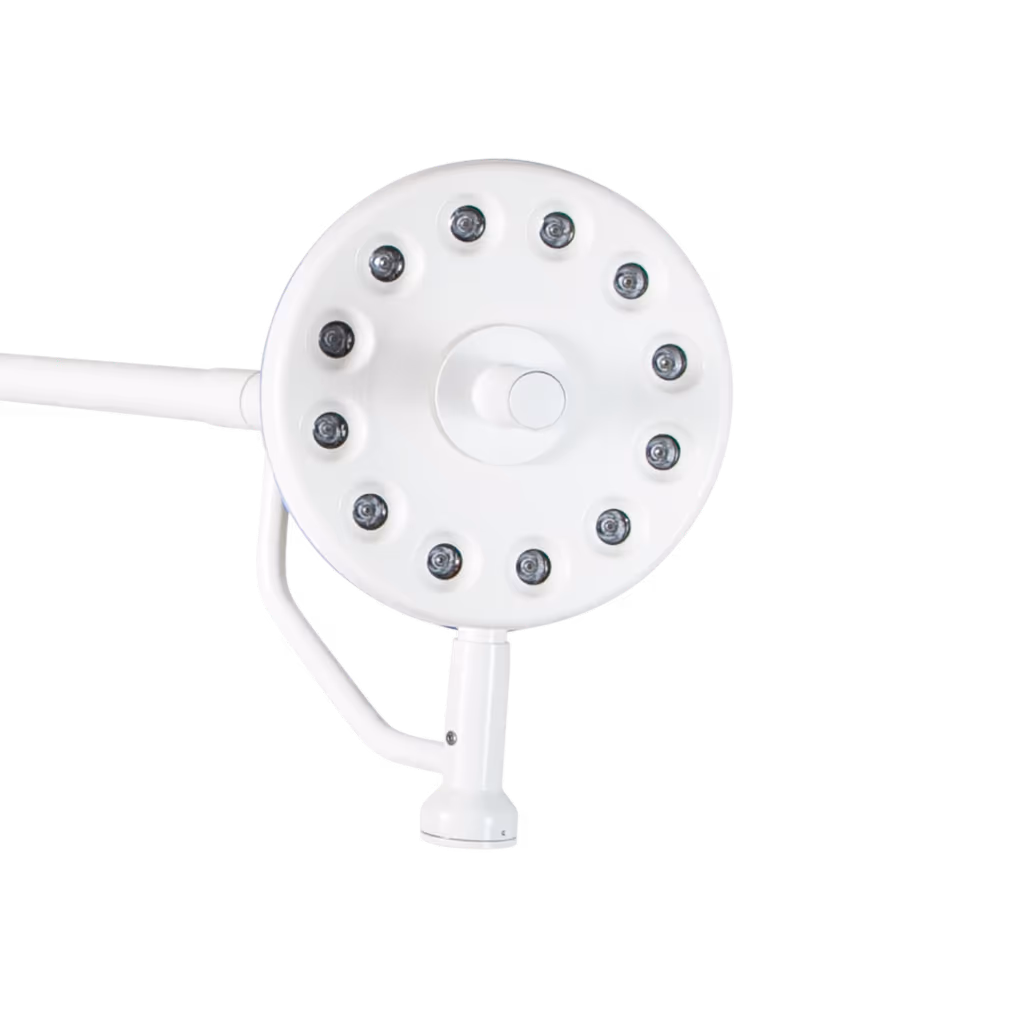

Luminox 300
300 mm head, 100,000 lux at 1 m, fixed focus, 6500 K ± 500 K CCT, and CRI > 90 - ideal for compact procedure rooms.
Luminox 500
Up to 600 mm head, 160,000 lux at 1 m, variable Narrow/Broad focus, 3500-5500 K CCT, and CRI > 92.
In detail
Integrated dome controls
On-head buttons let the surgeon adjust intensity instantly - no separate panel and no fumbling at the sterile field edge.
Smooth, easy-clean housing
Open-type rounded body with no sharp corners or crevices - every surface wipes down hygienically between lists.
Globally certified manufacturing
Manufactured under ISO 13485 with CE marking and CDSCO compliance - qualified for international tenders.
Luminox 300 and Luminox 500 heads
Choose a compact 300 mm fixed-focus head for procedure rooms, or a Luminox 500 head up to 600 mm with variable Narrow and Broad focus modes.
Configurations
View all configurations

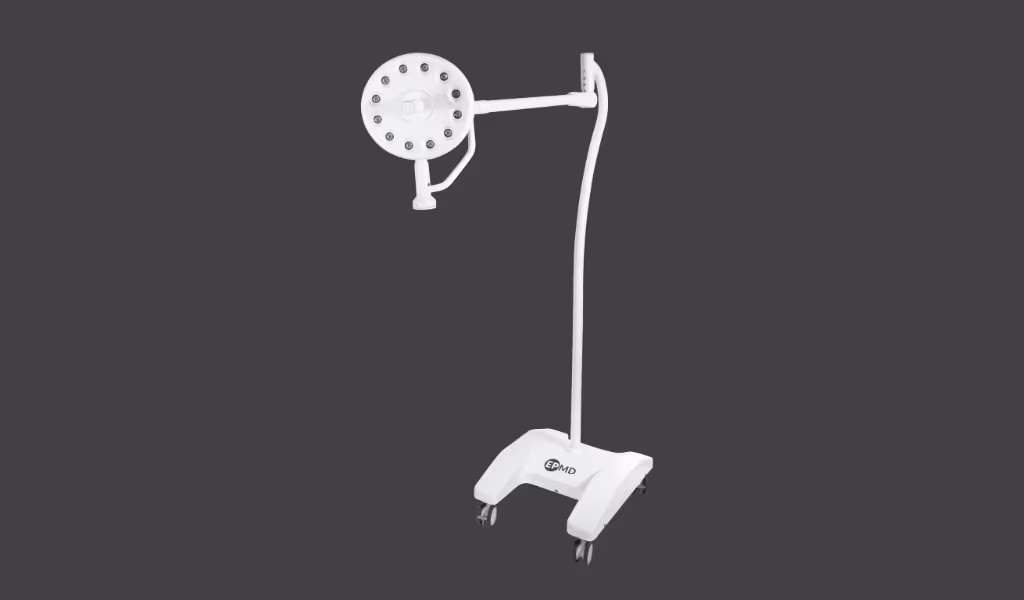

Mobile Dome System
Castor-mounted Luminox 300 for flexible procedure rooms and shared clinical spaces.
- MountMobile castor
Single Dome System
Ceiling-mounted single Luminox 300 dome for everyday surgical and procedure lists.
- MountSingle ceiling
Double Dome System
Dual-head ceiling system with Luminox 300 and Luminox 500 for shadow control across wider fields.
- MountDouble ceiling
Accessories
View all accessories
Specifications
| Parameter | Luminox 300 | Luminox 500 |
|---|---|---|
| Max. Central illumination at 1 m | 100,000 lux | 160,000 lux |
| Light field diameter at 1 m (d10) | 250 mm ± 10% | 200 mm - 300 mm ± 10% |
| Light head diameter | 300 mm | up to 600 mm |
| Depth of illumination at 20% (L1+L2) | 1300 mm | 1200 mm |
| Depth of illumination at 60% (L1+L2) | 800 mm | 750 mm |
| Correlated Color Temperature (CCT) | 6500 K ± 500 K | 3500 K - 5500 K |
| Color Rendering Index (CRI) | > 90 | > 92 |
| Power consumption | < 25 W | < 50 W |
| Focus Mode | Fixed | Variable (Narrow, Broad) |
| Dimming Range | 0 – 100 % | 0 – 100 % |
| No. of LEDs | 12 | 30 |
| LED Service Life | 60,000 hours | 60,000 hours |
| Supply Voltage | 230 V ±10%, 50 Hz ±5% | 230 V ±10%, 50 Hz ±5% |
| Power Supply Unit | 24 V DC ±10%, 4.2 A max | 24 V DC ±10%, 4.2 A max |
| Operating Temperature | 5°C - 40°C | 5°C - 40°C |
| Humidity | 10% - 90% | 10% - 90% |
Frequently asked questions
- What is the difference between Luminox 300 and Luminox 500?
- Luminox 300 uses a 300 mm head with fixed focus, 100,000 lux at 1 m, and 6500 K ± 500 K CCT. Luminox 500 offers up to a 600 mm head, 160,000 lux, variable Narrow/Broad focus, and adjustable CCT from 3500 K to 5500 K with CRI > 92.Source: Luminox Series product specifications
- Which Luminox mount should I specify?
- Mobile suits shared or temporary rooms. Single dome covers one table field. Double and triple domes serve wider tables or programmes that need overlapping fields and redundancy.Source: Luminox Series configurations
- When should each focus mode be used on Luminox 500?
- Broad covers most open work. Narrow tightens the field for smaller cavities. Focus modes apply to Luminox 500 only.Source: Luminox Series product specifications
- Are Luminox lights IEC compliant?
- Yes. All values conform to IEC 60601-2-41 and are subject to a general industrial tolerance of ± 5%. Maximum illuminance does not exceed 160,000 lux.Source: Luminox Series product specifications
- Is custom development available?
- Yes. The specifications can be adapted for wall, single, double, triple, and mobile versions of the Luminox series to match programme-specific requirements.Source: Luminox Series product brochure
