Constella Series configuration range
Configurations
Mount and dome options for Constella Series. Compare SKUs and review configuration imagery.
Mobile
Constella C Mobile
Mobile OT light engineered for flexible theatre and procedure-room work.
- MountMobile
- DomesC
- Light Head Diameter520 mm
- Max Illumination at 1m160,000 lux
- Power Consumption45 W
- No. of LEDs18
Constella D Mobile
Large-dome mobile OT light for deeper cavities and broader fields.
- MountMobile
- DomesD
- Light Head Diameter720 mm
- Max Illumination at 1m160,000 lux
- Power Consumption55 W
- No. of LEDs30
Single ceiling
Constella C Single
Ceiling-mounted compact dome for everyday surgical lists.
- MountSingle ceiling
- DomesC
- Light Head Diameter520 mm
- Max Illumination at 1m160,000 lux
- Power Consumption45 W
- No. of LEDs18

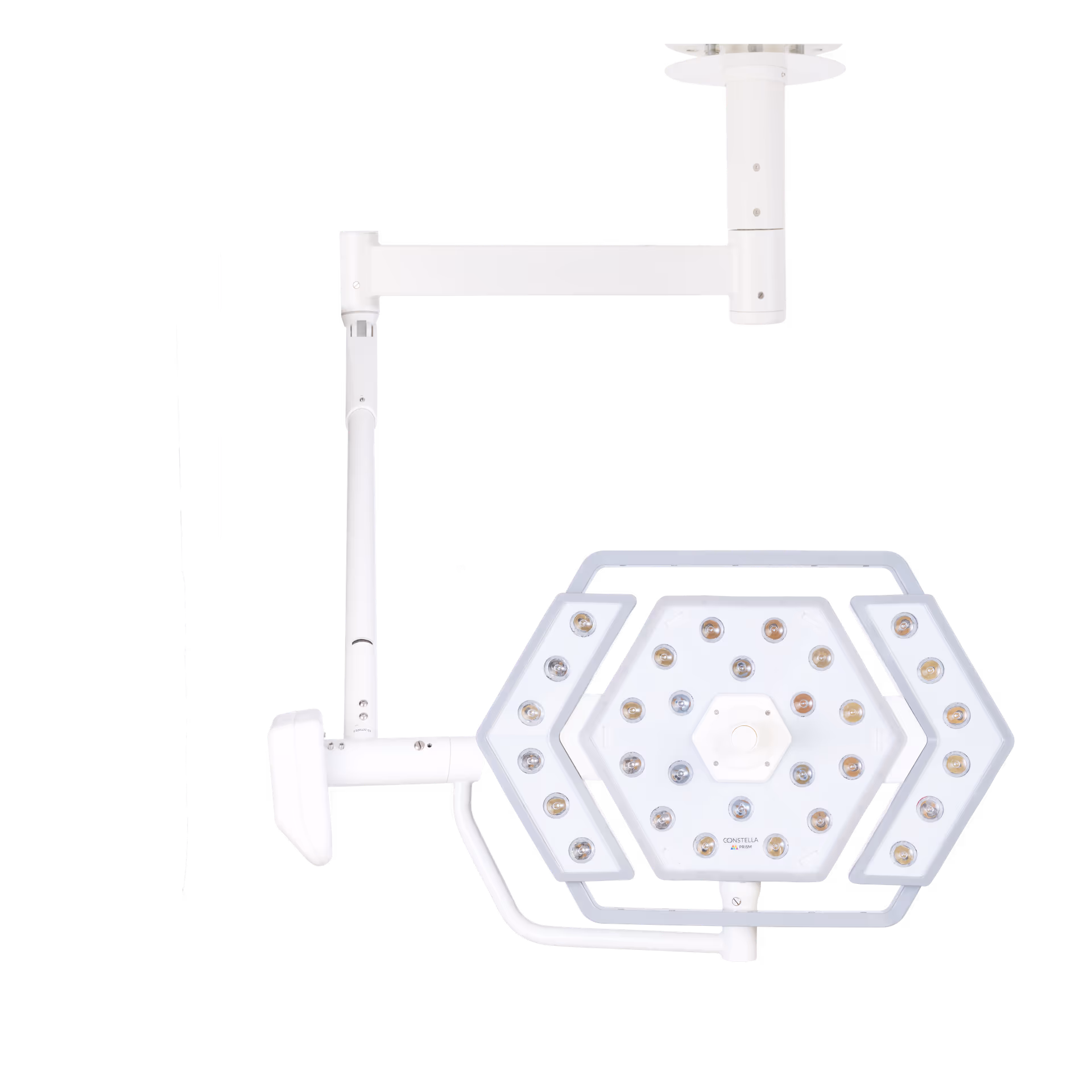

Constella D Single
Ceiling-mounted large dome for deep-cavity and multi-specialty rooms.
- MountSingle ceiling
- DomesD
- Light Head Diameter720 mm
- Max Illumination at 1m160,000 lux
- Power Consumption55 W
- No. of LEDs30
Double ceiling

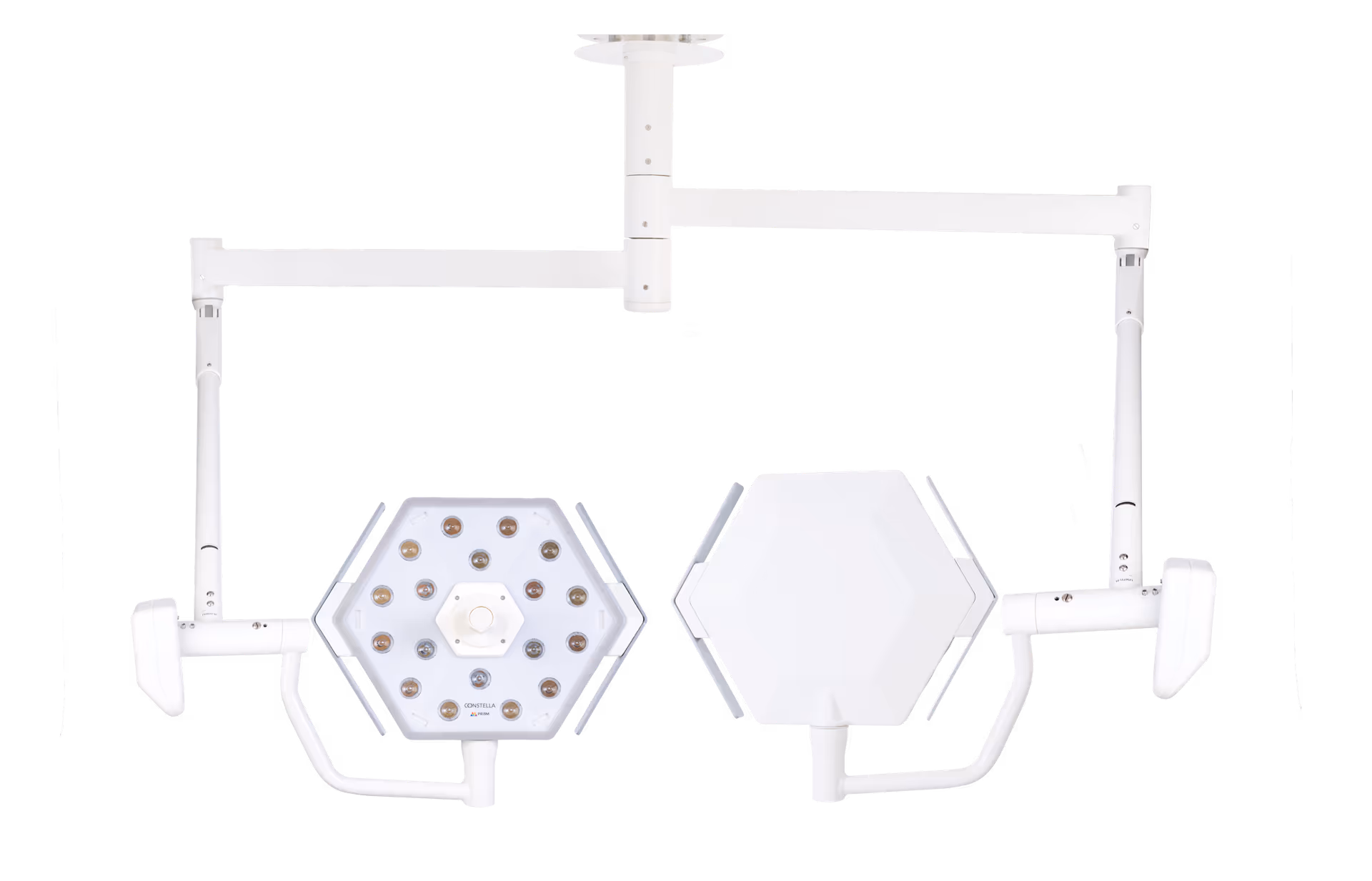

Constella C-C
Dual compact domes for shadow control across the field.
- MountDouble ceiling
- DomesC + C
- Light Head Diameter520 mm | 520 mm
- Max Illumination at 1m160,000 lux | 160,000 lux
- Power Consumption45 W | 45 W
- No. of LEDs18 | 18

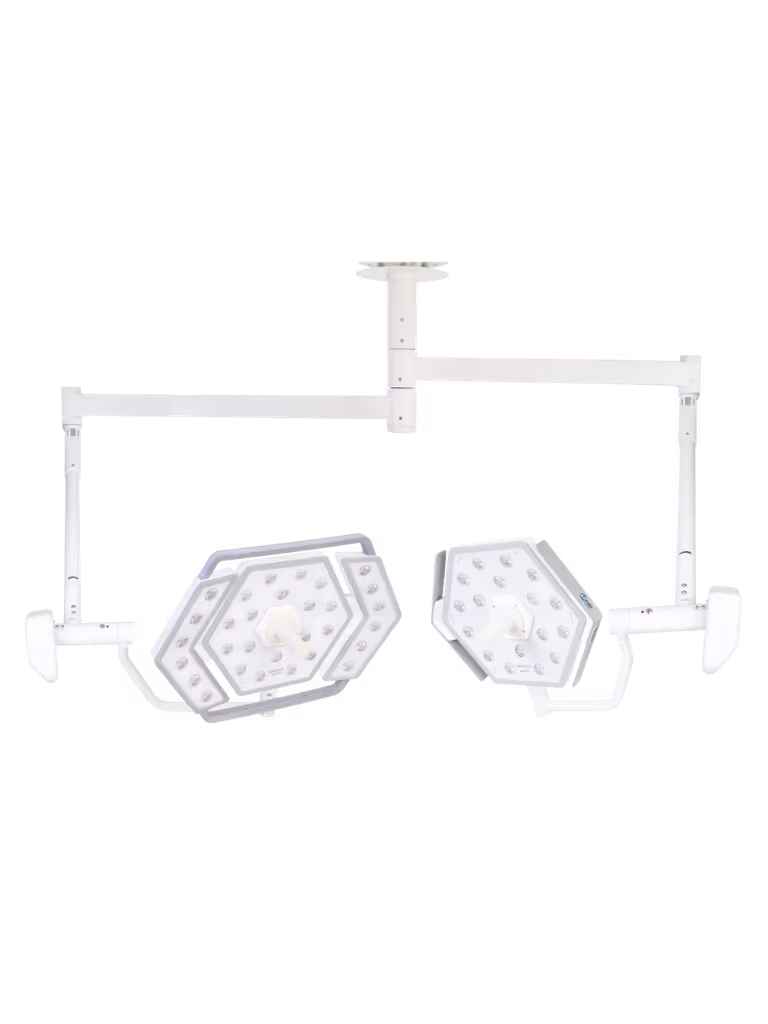

Constella C-D
Compact plus large dome pairing for mixed cavity work.
- MountDouble ceiling
- DomesC + D
- Light Head Diameter520 mm | 720 mm
- Max Illumination at 1m160,000 lux | 160,000 lux
- Power Consumption45 W | 55 W
- No. of LEDs18 | 30

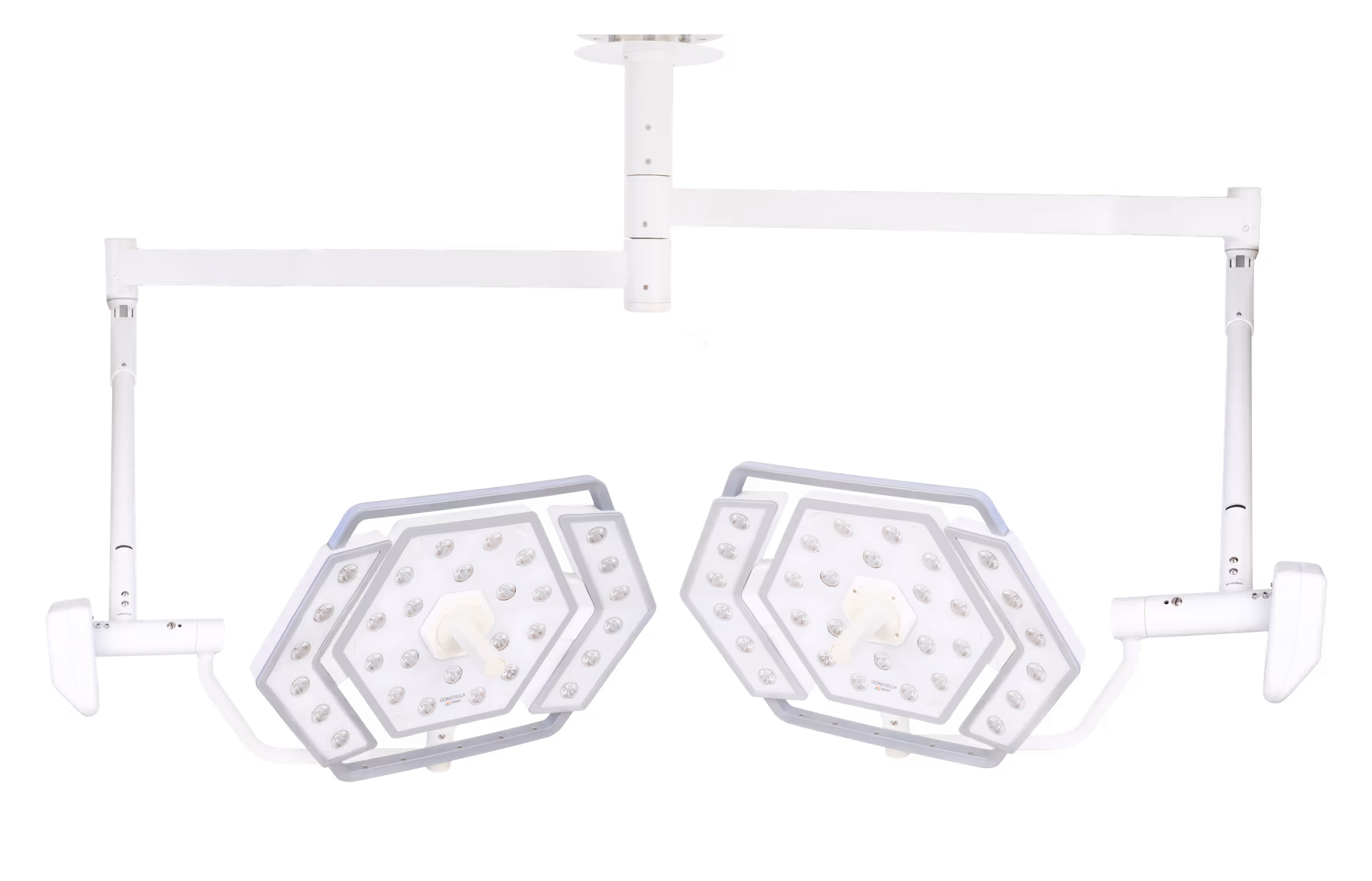

Constella D-D
Dual large domes for teaching theatres and complex lists.
- MountDouble ceiling
- DomesD + D
- Light Head Diameter720 mm | 720 mm
- Max Illumination at 1m160,000 lux | 160,000 lux
- Power Consumption55 W | 55 W
- No. of LEDs30 | 30
Triple ceiling
Constella C-C-C
Triple compact domes for multi-site coverage.
- MountTriple ceiling
- DomesC + C + C
- Light Head Diameter520 mm | 520 mm | 520 mm
- Max Illumination at 1m160,000 lux | 160,000 lux | 160,000 lux
- Power Consumption45 W | 45 W | 45 W
- No. of LEDs18 | 18 | 18

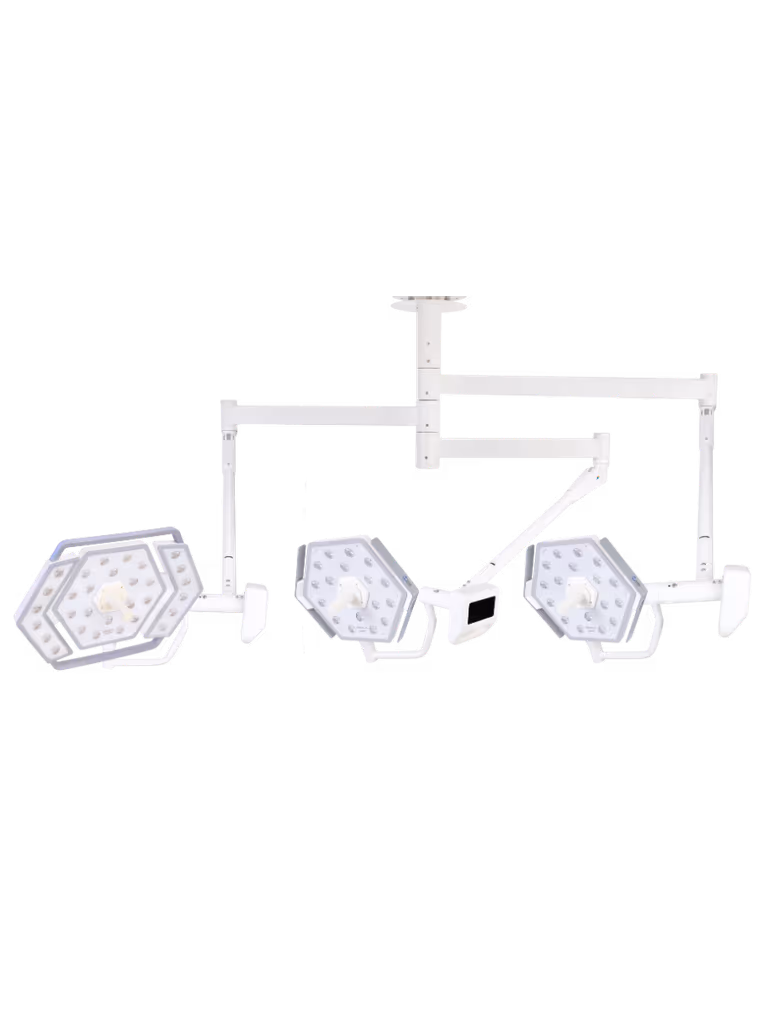

Constella C-C-D
Two compact domes plus one large dome for mixed fields.
- MountTriple ceiling
- DomesC + C + D
- Light Head Diameter520 mm | 520 mm | 720 mm
- Max Illumination at 1m160,000 lux | 160,000 lux | 160,000 lux
- Power Consumption45 W | 45 W | 55 W
- No. of LEDs18 | 18 | 30

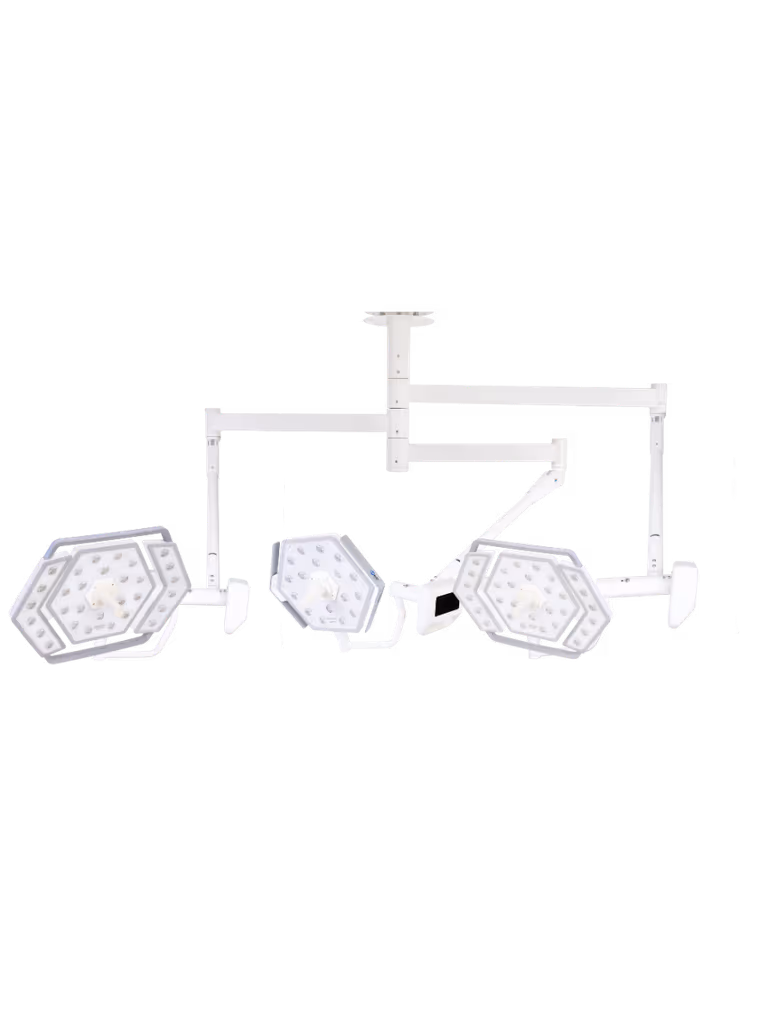

Constella C-D-D
One compact dome plus two large domes for deep work.
- MountTriple ceiling
- DomesC + D + D
- Light Head Diameter520 mm | 720 mm | 720 mm
- Max Illumination at 1m160,000 lux | 160,000 lux | 160,000 lux
- Power Consumption45 W | 55 W | 55 W
- No. of LEDs18 | 30 | 30

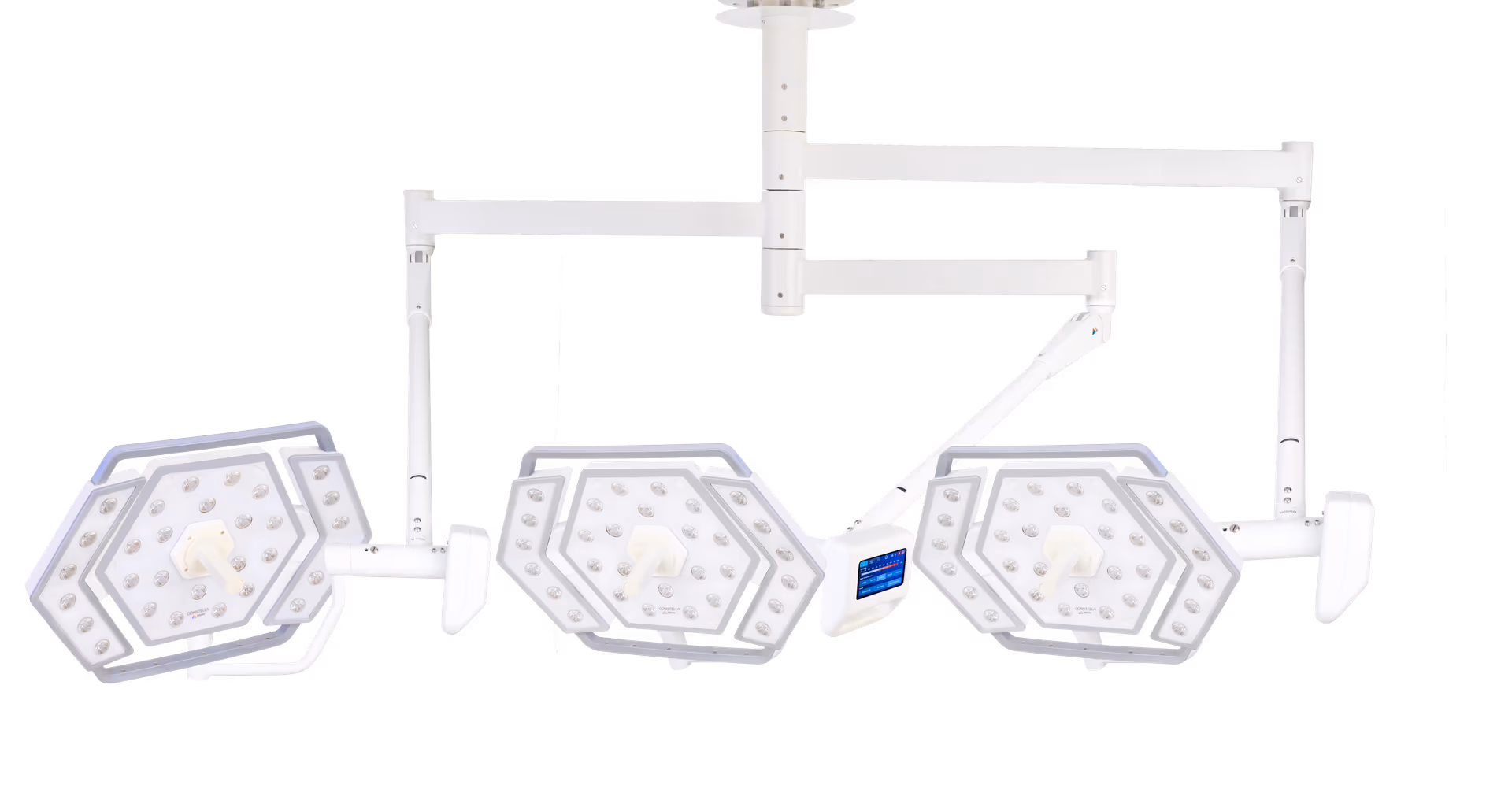

Constella D-D-D
Triple large domes for high-coverage multi-specialty theatres.
- MountTriple ceiling
- DomesD + D + D
- Light Head Diameter720 mm | 720 mm | 720 mm
- Max Illumination at 1m160,000 lux | 160,000 lux | 160,000 lux
- Power Consumption55 W | 55 W | 55 W
- No. of LEDs30 | 30 | 30
